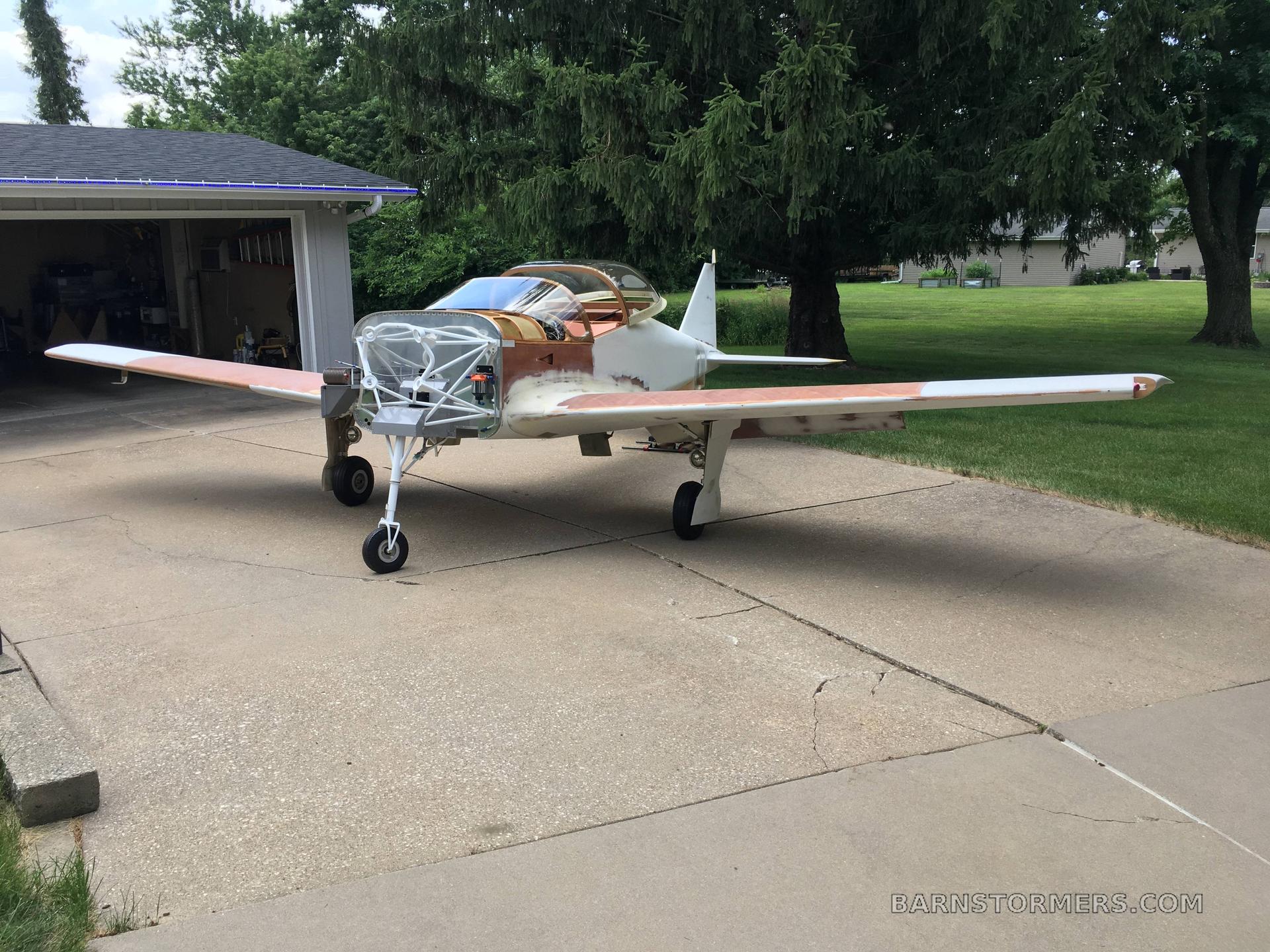

This Osprey GP-4 unfinished project, located in Cedar Rapids, Iowa, and offered at $25,000, is described by the seller as a beautifully constructed airframe built to the plans without significant modifications and at an honest 98+ percent completion point. The project awaits a new owner with the persistence and ability to see it through to completion; it requires all interior appointments, exterior fit and finish, avionics, and most everything north of the firewall. The seller encourages interested parties to study the attached full description document before judging the value of the offering.

The airframe is essentially complete except...

Avionics

GPS

Avionics not yet installed - project needs avionics

Comms

Internal antennas installed per plans for comms (1 in vertical stabilizer, 1 in right wing), VOR/Glideslope and Marker Beacon in aft fuselage, and transponder in lower fuselage. Antennas wired to avionics bay with high quality coaxial cable. Avionics not yet installed.

Additional Equipment

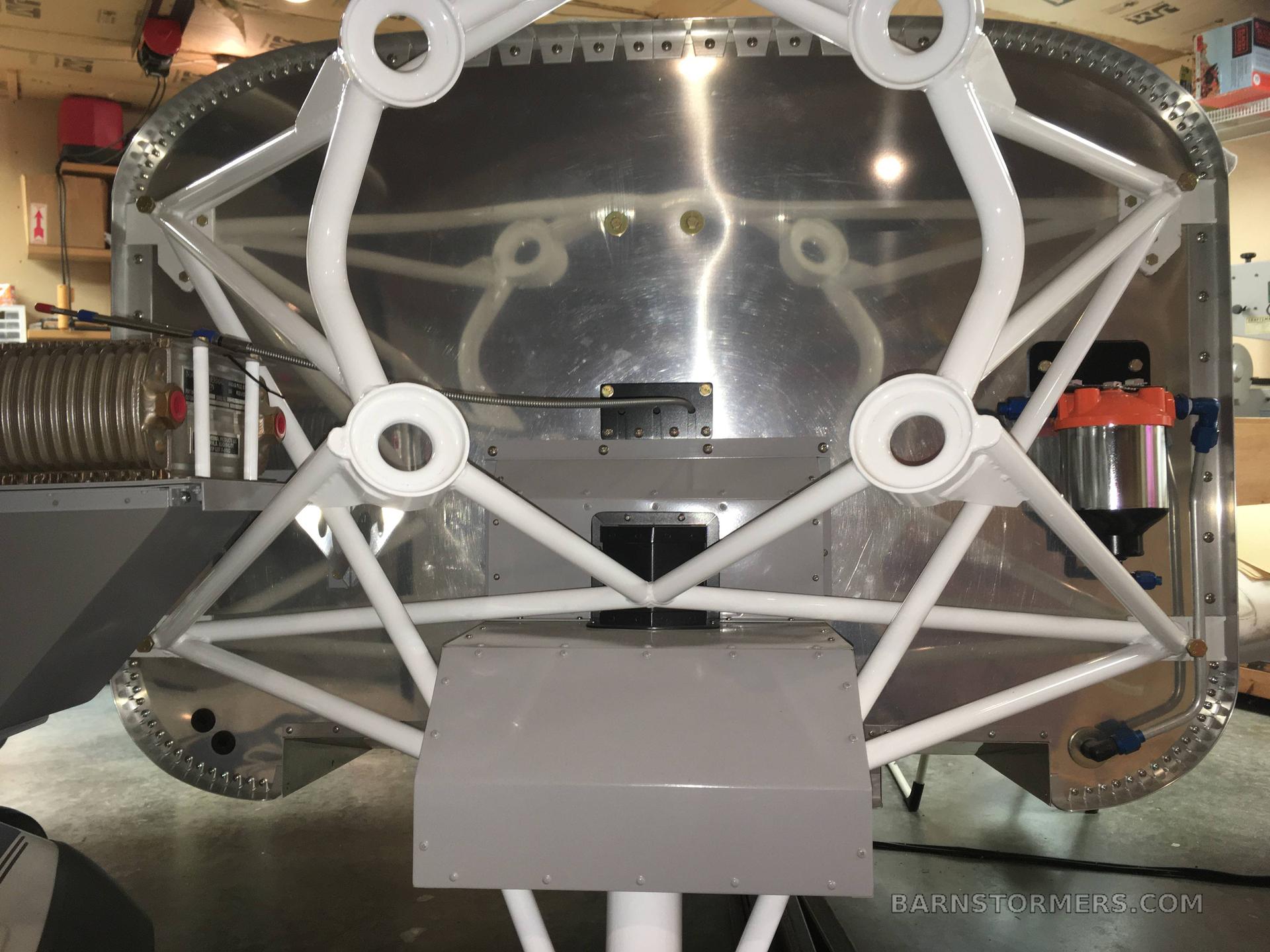

Engine Mount

Engine mount/nose gear assembly professionally welded and powder coated. Pre-welded IO-360 dynafocal ring. New heavy duty lord mounts included.

Firewall

Fiberfrax - Aluminum firewall with ceramic heat barrier per plans. Cowl mount on perimeter of firewall complete.

Oil Cooler

Airflow Systems 20006A - New oil cooler, NDM P/N installed on firewall shelf. Output plenum complete.

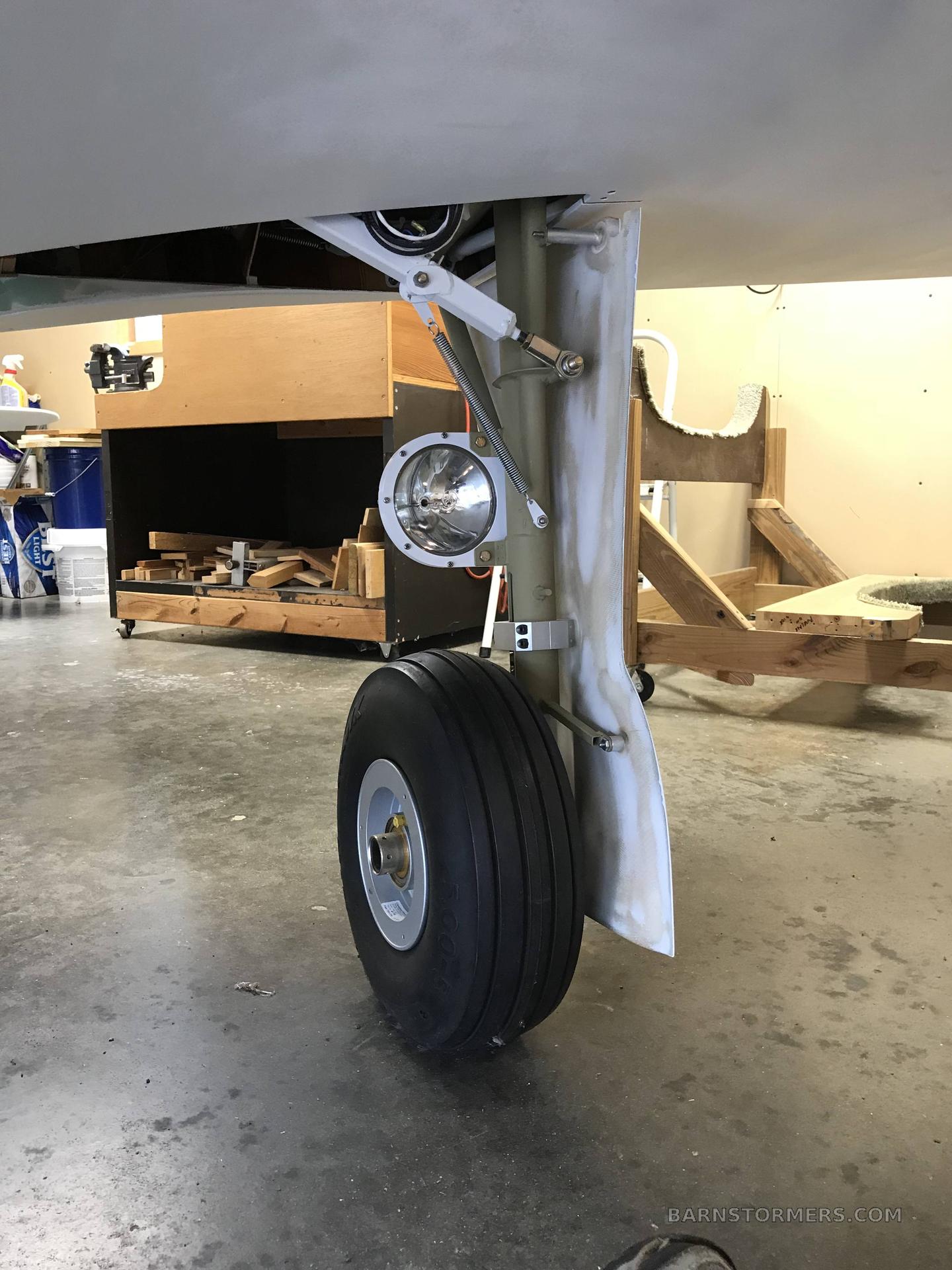

Landing Gear

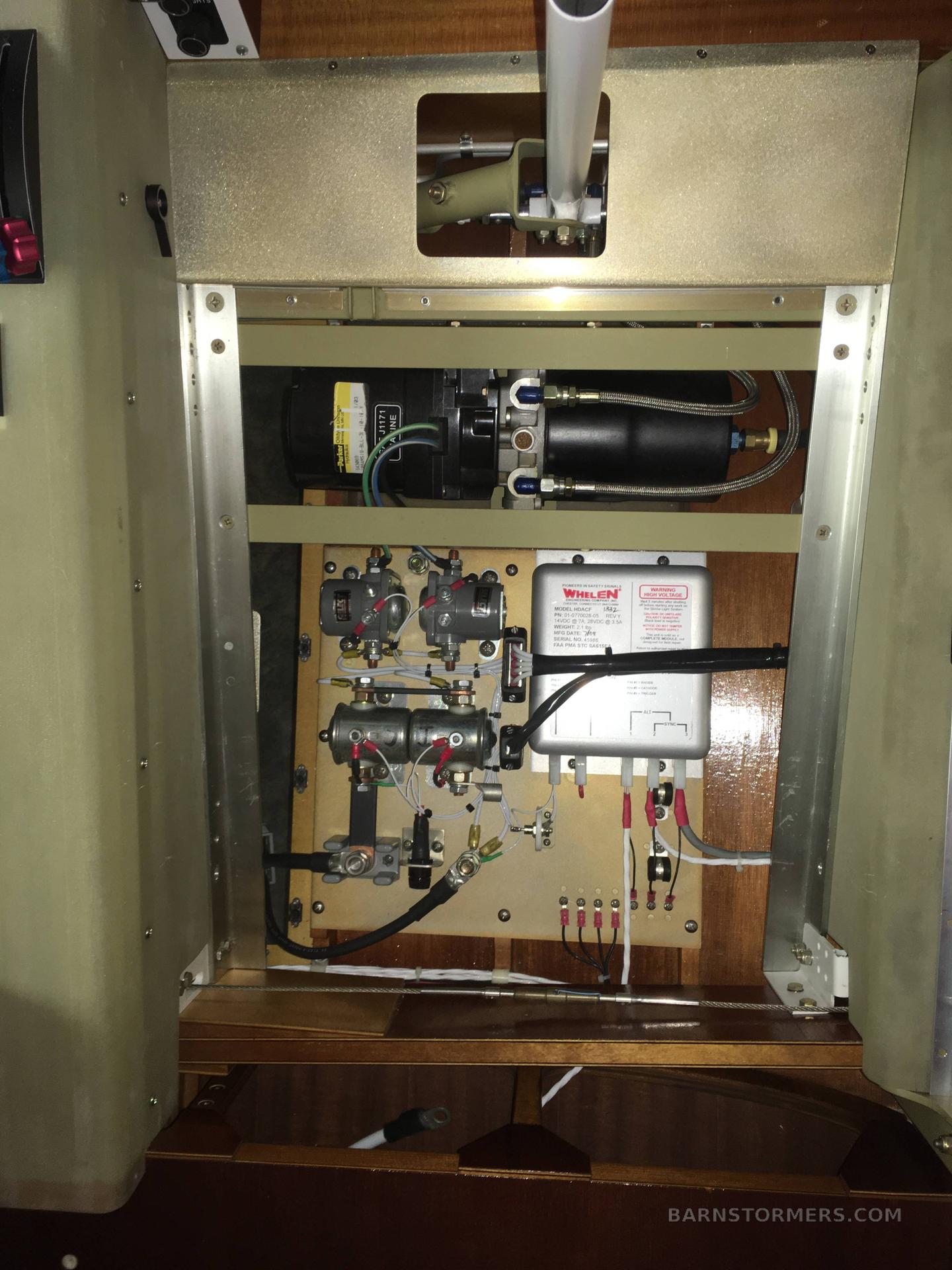

Parker - Electro-hydraulic landing gear complete. Main gear components professionally welded and painted with self etching primer. Main gear doors installed. 1000 psi hydraulic power unit installed. All three gears cycle well on jacks.

Linear Actuator

Vans RV-6/7/8/9 - Flaps extended and retracted by new linear actuator. Maximum flap deflection correct.

Fuel System

Mitchell - Complete through firewall mounted fuel filter. gallon centerline fuselage tank and gallon tank in each wing. All tanks pressure tested. Wing tanks use sight gauges. Fuselage tank uses float sensor and panel indicator. Quick drains on all tanks. Four position fuel tank selector. P/N fuel pump providing PSI, suitable for fuel injected engines.

Canopy

3/16" clear canopy installed and sliding well on cabin rails. Forward and aft locking pins engage when canopy closed. Tight fitting skirt installed blending into fuselage. 1/4" thick lightly smoked windscreen included and cut to size, but not installed.

Control Cables

All control cables throughout airframe are stainless steel with end fittings professionally swaged by Aircraft Spruce.

Pitot Tube

12-AN5812 - New heated pitot tube, type installed.

Pitch Trim

Ray Allen - New electric pitch trim system installed.

Wheels and Brakes

Cleveland - New wheels/brakes, with rudder pedal cylinders reservoir installed. Brakes need to be plumbed from rudder pedal cylinders to brake cylinders.

Strobe Power Supply

Whelen HDAFC - New model HDAFC strobe power supply (multi-flash) with combination strobe/position lights on wingtips and tail installed.

Cabin Air Vents

NACA inlets, aeroduct, and cabin air vents installed.

Antennas

Internal antennas installed per plans - comms (1 vertical stabilizer, 1 right wing), VOR/Glideslope and Marker Beacon in aft fuselage, transponder in lower fuselage. Wired to avionics bay with high quality coaxial cable.

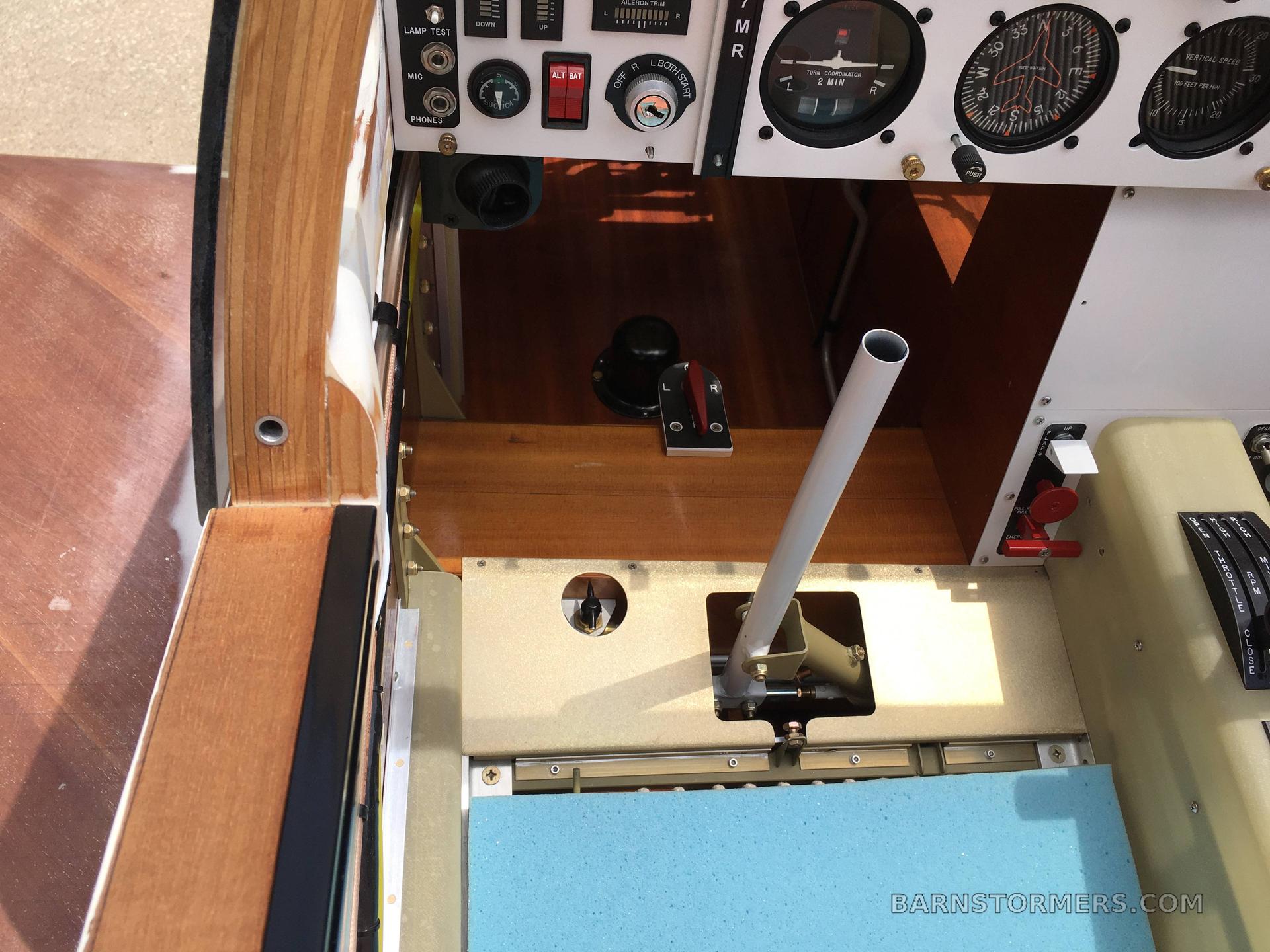

Flight Data System

GT-50 - Flight Data System (clock, timer, G-meter, voltmeter and OAT).

Airspeed Indicator

Used airspeed indicator.

Turn Coordinator

Used electric turn coordinator.

Artificial Horizon

Used artificial horizon.

Directional Gyro

Used directional gyro.

Altimeter

Used altimeter.

Vertical Speed Indicator

Used vertical speed indicator.

Tachometer

New tachometer.

Fuel Flow / Manifold Pressure Gauge

New combination TSO'd fuel flow / manifold pressure gauge.

EGT / CHT Gauges

Switch selected exhaust gas temperature and cylinder head temperature gauges with appropriate sensors (all used).

Oil Temperature / Pressure Gauge

Westach - combination oil temperature and oil pressure gauge with oil temperature sender and oil pressure transducer (all new).

Voltmeter / Ammeter

Westach - combination voltmeter/amp meter (new).

Fuel Pressure Gauge

Fuel pressure gauge (new).

Center Fuel Tank Level Indicator

Center fuel tank level indicator (new).

Compass

Precision Aviation PAI-700 - Vertical Card Magnetic Compass, new.

Vacuum Pump

Rapco RA215CC - vacuum pump and vacuum regulator, both used.

Headsets

David Clark H10-75 - Two (military version) headsets with adapter connectors.

Seat Frames and Cushions

Confor CF42 - Seat frames built and strung, but not finished. Includes one 1" X 16" X 18" Soft Foam seat cushion, one 1" X 16" X 18" Medium Foam seat cushion, one 1" X 18" X 24" Soft Foam seat cushion, and one 1" X 18" X 24" Medium Foam seat cushion.

Wing Jacks

Two wing jacks included.

Control Cable

A-920 - One 60 inch push-pull control cable for throttle, prop or mixture, new.
