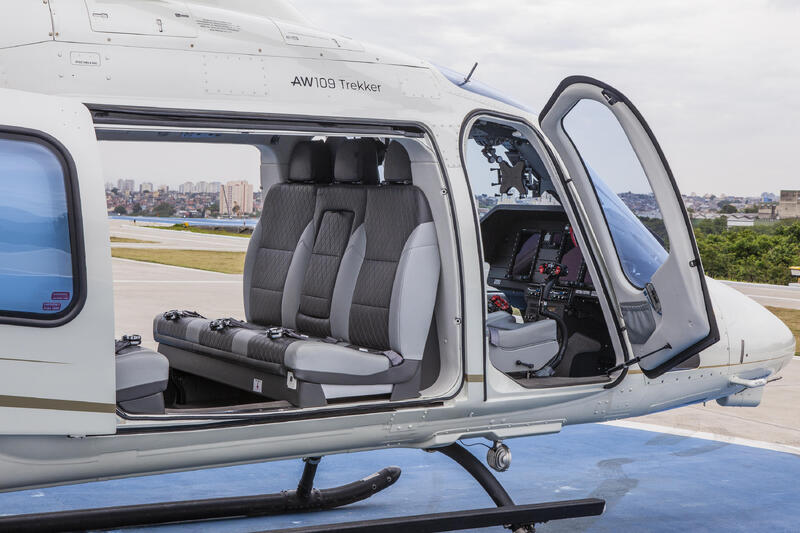

2024 Turbine Helicopter AW109 TrekkerTurbine Helicopter • Brazil

PFD

PFD - Dual Pilot IFR Package with Co-Pilot Large Color Primary Flight Display (PFD) embedding: Synthetic Vision System (SVS), Highway in the Sky (HITS), Helicopter Terrain Awareness and Warning System (HTAWS), Flight Management System (FMS), Radio Tuning Controls, 2nd VHF/AM, 2nd VOR/ILS, 2nd GPS, DME, Marker Beacon, Electronic Standby Indicator, Co-Pilot Intercommunication System (ICS), Dual Master Warning Lights, Dual Master Caution Lights, 2nd Magnetic Compass Indicator, Digital Clock, Flight Director

Weather

Bendix/King RDR 2000 - Weather Radar RDR

Traffic

Avydine TAS-620 - Traffic Advisory System

GPS

Euro NAV VII - Enhanced Vision System (EVS) Max-Viz, Digital Map VII

Comms

VHF - 2nd VHF/AM, 2nd VOR/ILS, 2nd DME, Marker Beacon, Radio Tuning Controls

AP

Honeywell SP-711 - AFCS 3-axis Duplex

EMS

Electronic Standby Indicator, Digital Clock, Flight Director, Radar Altimeter

MFD

Euroavionics EuronavVII - Digital Map VII

ADS-B In

Max-Viz EVS-23000 - Enhanced Vision System (EVS)

Enhanced Vision System

Max-Viz EVS-23000 - Enhanced Vision System (EVS)

Radar Altimeter

Air Conditioning

Air Conditioning ECU, Bleed Air Heater

Bleed Air Heater

Fuel System

213 USgal Crash-Resistant Fuel System, Fuel Cap with Key-Lock, Pulsed Chip Detectors

Rotor Brake

Windshield Wipers

Windshield Wipers (pilot and co-pilot) with Wiper Switch on Cyclic Grips

Fire Extinguishers

Two (2) Engine Compartment Fire Extinguishers

Landing Light

450 W Retractable/Rotating Landing Light (nose mounted)

Strobe Lights

Strobe Lights on Horizontal Stabilizer

Heater

Heater Yes, Bleed Air Heater

Baggage Compartment

Baggage Compartment Yes, Baggage Compartment Extension (2.3 m), Baggage Compartment Extension (1.9m), Baggage Compartment Lights, Vertical Baggage Compartment Door

Emergency Equipment

Two Engine Compartment Fire Extinguishers, First Aid Kit, Emergency Locator Transmitter

Lighting

450 W Retractable/Rotating Landing Light (Nose Mounted), Strobe Lights On Horizontal Stabilizer, Baggage Compartment Lights, Reading Lights, Advisory Lights, Floor Courtesy Lights

Seating

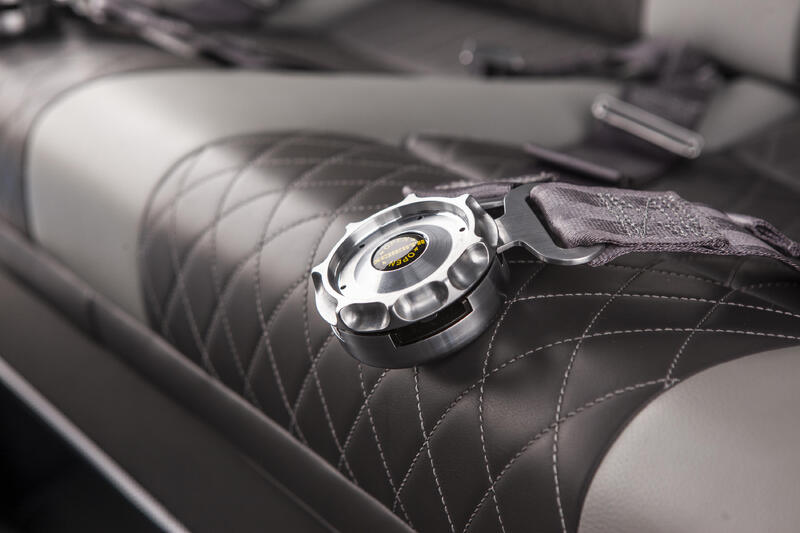

Crash-Resistant Co-Pilot Seat, Three Crashworthy Fwd Facing Seats (Aft Bench), Three Crashworthy Aft Facing Seats (Central Bench), 4-Point Shoulder Harness with Inertial Reels for All Passenger Seats

Audio System

Bose ANR - Headset ANR Type (Qty 6), Cabin Loudspeakers (Qty 2)

Digital Map

EuronavVII - Digital Map (The Standard Global Package Includes: Raster Map Data: Outline Map (basic Detail), Euroavioncs Map 1:1.000.000, Vector Map Data: Overview Map (basic Detail), Terrain Data: DTED 0, Database: Jeppensen NavData, Additional Maps/options And Any Updates Need To Be Ordered Directly To By The Customer)

Emergency Locator Transmitter

Power Supply

AC Power Supply System (Two [2] Inverters), Dual USB Charger At Central Bench (RH), Interseat Console Tray With 12 V Power Supply

Safety Equipment

Two (2) Engine Compartment Fire Extinguishers, Crash-Resistant Co-Pilot Seat, Fore And Aft Adjustable, With Lap Belts And Headrest, Shoulder Harness With Inertial Reels (co-pilot), 4-Point Shoulder Harness With Inertial Reels And Safety Belts For All Passenger Seats, First Aid Kit

Cabin Features

Bose ANR - VIP Interior with Full Leather Seats, Executive Interior 6 Places, Sound Proofing, Cabin Loudspeakers (2), Upper and Lower Air Vents, Headset ANR Type (6), Floor Carpeting

Exterior Steps

Long step bar (LH & RH)

Landing Lights

450 W Retractable/rotating landing light (nose mounted)

Exterior Lighting

450 W Retractable/Rotating Landing Light (nose mounted), Strobe Lights On Horizontal Stabilizer

Exterior Features

Long Step Bar (LH & RH), Windshield Wipers (pilot and co-pilot) with wiper switch on cyclic grips, Reinforced Windshield, Mast Vibration Absorver (MVA), Rotor Brake, Passenger Foot Step (RH), Cockpit Access Handle (RH), Cockpit Access Handle (LH)

Ground Equipment

Air Intake/Exhaust Covers, Ground Tools Kit (including tow bar, ground wheels, lifting tool), Pilot Tubes Covers, Tie-Down Fittings (main rotor retention straps)

Documentation

Rotorcraft Flight Manual (RFM) (hard copy) and technical publications (soft copy)

Intercommunication System

Co-Pilot Intercommunication System (ICS)

Chip Detectors

Pulsed Chip Detectors

USB Charger

Dual USB Charger at Central Bench (RH)

First Aid Kit

Headset

Bose ANR - Headset ANR Type (Qty 6)

Dual Controls

Dual Controls Yes

Soundproofing

Windshield

Reinforced Windshield, Windshield Wipers (Pilot And Co-Pilot) With Wiper Switch On Cyclic Grips

Rotor System

Mast Vibration Absorber (MVA), Rotor Brake

Chip Detection

Pulsed Chip Detectors

Step Bars

Long Step Bar (LH), Long Step Bar (RH), Passenger Foot Step (RH), Cockpit Access Handle (RH), Cockpit Access Handle (LH)

Doors

Doors Key Lock, Crew Open Door Actuators

Windows

Cabin Double Layer Acrylic Windows (Azure Colored), Upper And Lower Air Vents

Headsets

Bose ANR - Headset ANR Type (Qty 6)

Interior Finishing

Executive Interior - 6 Places VIP Passenger Cabin Including: Sound Proofing, Liners Leather Or Leatherette Covered, Cabin Loudspeakers (Qty. 2), VIP Cabin Finishing, VIP Cockpit Package Including: Interseat Console Tray With 12 V Power Supply, Multipurpose Holder (With Space Provision For Fire Extinguisher), Door Pockets (RH And LH), Headset Hooks (Qty 2), Cyclic And Collective Leather Gators, Curtains In Cockpit On Upper Windows, VIP Cockpit Finishing, Floor Carpeting

Interior

Bose ANR - Executive Interior 6 Places, VIP Passenger Cabin Including: Sound Proofing, Liners Leather Or Leatherette Covered, Cabin Loudspeakers (QTY. 2), Reading Lights, Advisory Lights, Floor Courtesy Lights, Upper And Lower Air Vents, VIP Cabin Finishing, VIP Cockpit Package Including: Interseat Console Tray With 12 V Power Supply, Holder (with Space Provision For Fire Extinguisher), Door Pockets (RH And LH), Headset Hooks (Qty 2), Cyclic And Collective Leather Gators, Curtains In Cockpit On Upper Windows, VIP Cockpit Finishing, Three (3) Crashworthy Fwd Facing Seats (aft Bench) Covered With Leather, With Foldable Armrest, Three (3) Crashworthy Aft Facing Seats (central Bench) Covered With Leather, With See-through Modification And With Foldable Armrest, 4-Point Shoulder Harness With Inertial Reels And Safety Belts For All Passenger Seats, Cabin Double Layer Acrylic Windows (azure Colored), Headset ANR Type (Qty 6), Floor Carpeting

Additional Equipment

Crash-resistant Co-pilot Seat, Fore And Aft Adjustable, With Lap Belts And Headrest, Shoulder Harness With Inertial Reels (co-pilot), AC Power Supply System (two [2] Inverters), Radar Altimeter, Doors Key Lock, Airframe Hour Meter, Baggage Compartment Lights, Crew Open Door Actuators, Two (2) Engine Compartment Fire Extinguishers, Fuel Cap With Key-lock, Pulsed Chip Detectors (In Lieu Of Quick Disconnecting Chip Detectors), 450 W Retractable/rotating Landing Light (nose Mounted), Reinforced Windshield, Baggage Compartment Extension (1.9m), Bleed Air Heater, Passenger Foot Step (RH), Air Conditioning ECU, Dual USB Charger At Central Bench (RH), Mast Vibration Absorver(MVA), Cockpit Access Handle (RH), Cockpit Access Handle (LH), First Aid Kit, Baggage Compartment Extension (2.3 m), Vertical Baggage Compartment Door (in Lieu Of Standard Type), Rotor Brake, Windshield Wipers (pilot And Co-pilot) With Wiper Switch On Cyclic Grips, Strobe Lights On Horizontal Stabilizer, Long Step Bar (LH), Long Step Bar (RH) (in Lieu Of Standard Passenger Foot Step (RH), Air Intake/exhaust Covers, Ground Tools Kit (including Tow Bar, Ground Wheels, Lifting Tool), Pilot Tubes Covers, Rotorcraft Flight Manual (RFM) (hard Copy) And Technical Publications (soft Copy), Tie-down Fittings (main Rotor Retention Straps)
