2023 Agusta AW109SPTurbine Helicopter • Buenos Aires, Autonomous City of Buenos Aires, Argentina

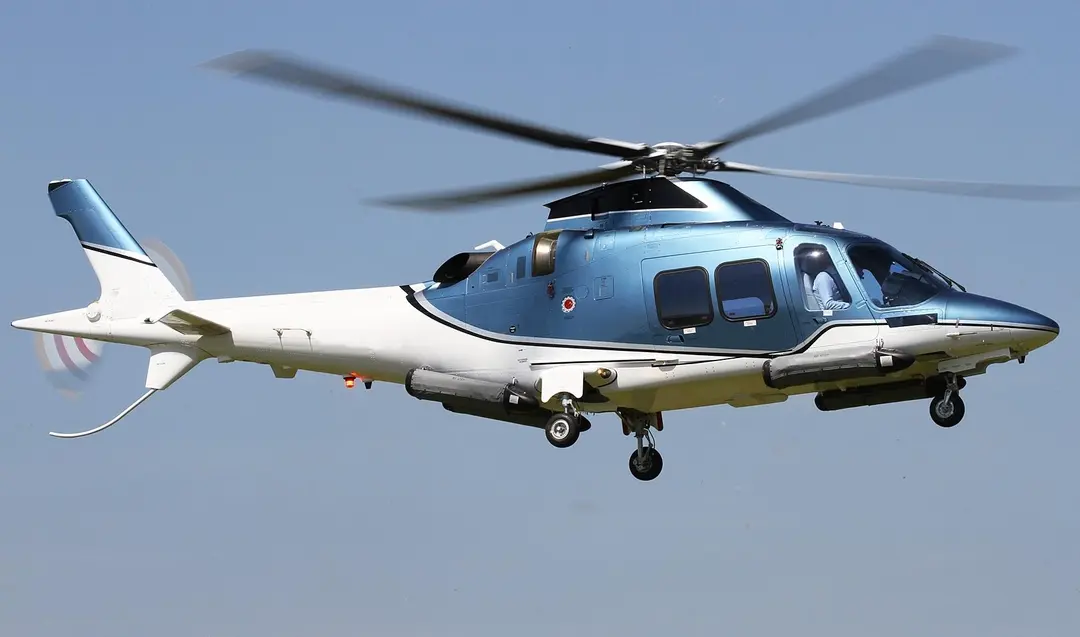

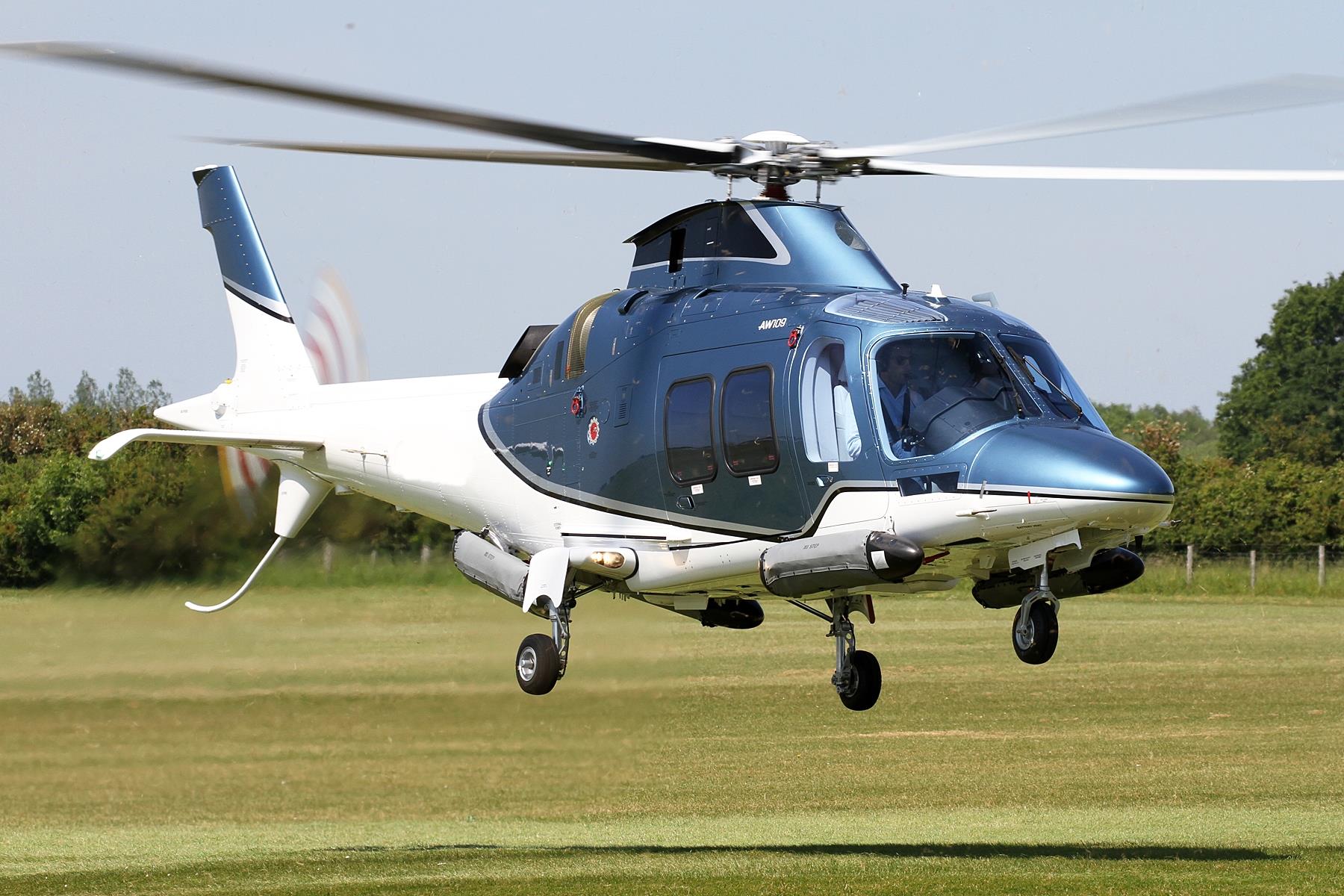

This 2023 Leonardo AW109SP, registration LV-KML, serial number 22446, is a VIP-configured helicopter located in Buenos Aires, Argentina, showing just 183 hours total time on the airframe and 370 total landings. Power comes from twin Pratt & Whitney PW207C engines, with Engine 1 at 183 hours since new (S/N PCE-BH1082) and Engine 2 at 171 hours since new (S/N PCE-BH1094). The aircraft underwent a full PPI inspection completed in 2025; per the seller, it has no damage history. It was on the G register from delivery until 2025 and has been on the LV register from 2025 to the present.

The avionics suite is a single-pilot dual-control IFR package...

Year: 2023

Make: Agusta

Series: A109 / AW109

Model: AW109SP

Tail #: LV-KML

Serial #: 22446

Find similar aircraft

Agusta AW109SP

Find Agusta AW109SP aircraft

Agusta A109 / AW109 Series

Find aircraft in this series

2020s Agusta A109 / AW109s

Find Agusta A109 / AW109s from the 2020s

All Agusta Aircraft

Browse all aircraft from Agusta

All Turbine Helicopters

Browse all turbine helicopter aircraft

Specifications

Category: Turbine Helicopter

Intended Use: Business, Passenger

Flight Rules: IFR

Seats: 6

Hours, Logs & Inspections

Total Time: 183 hrs

Engine 1 Time: 183 hrs

Engine 2 Time: 171 hrs

Inspection Status: Full PPI Inspection completed in 2025

Avionics

GPS

Chelton GPS/SBAS - Pilot GPS/SBAS interfaced EFIS/FMS; Co-pilot GPS/SBAS interfaced EFIS/FMS

Comms

Collins RTU-4210 - Second Radio Management System (RMS) Second VHF/AM VOR/ILS/ADF DME Radio Altimeter

4-axis dual duplex digital AFCS with integrated Flight Director

Audio

Cobham DACS - Digital Audio Control System (DACS) additional cockpit panel

Weather

Bendix/King RDR 2000 - Weather radar RDR (presented on EFIS)

Traffic

Avydine TAS-620 - Traffic Advisory System (presented on EFIS)

ADSB

Collins TDR-94 - ADS-B Out Capable Transponder lieu of standard transponder)

PFD

Dual pilot flight/navigation EFIS (2 displays) with embedded FMS, Synthetic Vision (SVS), HTAWS (Helicopter Terrain Awareness and Warning System), slip indicator and Remote Bug Panel (RBP); Co-pilot flight/navigation EFIS (2 displays) with embedded FMS, SVS, HTAWS, slip indicator and RBP

MFD

Additional Equipment

Crash-Resistant Fuel System

213 US gal crash-resistant fuel system (in lieu of 152 USG)

Battery

24 VDC 33Ah nickel-cadmium battery (20 cells in lieu of 19 cells)

Baggage Compartment Extension

2.3m baggage compartment extension

Strobe Lights

High-intensity strobe lights on horizontal stabilizer

USB Charger

USB charger in the cabin; iPad mount with USB charger in cockpit

Passenger Step

Electrically operated passenger step (LH)

Emergency Floats

Emergency floats fixed provisions; Emergency floats with life rafts embedded

Mooring Plates

Engine Washing Kit Provisions

Interior & Exterior

Interior Year: 2023

Paint Year: 2023

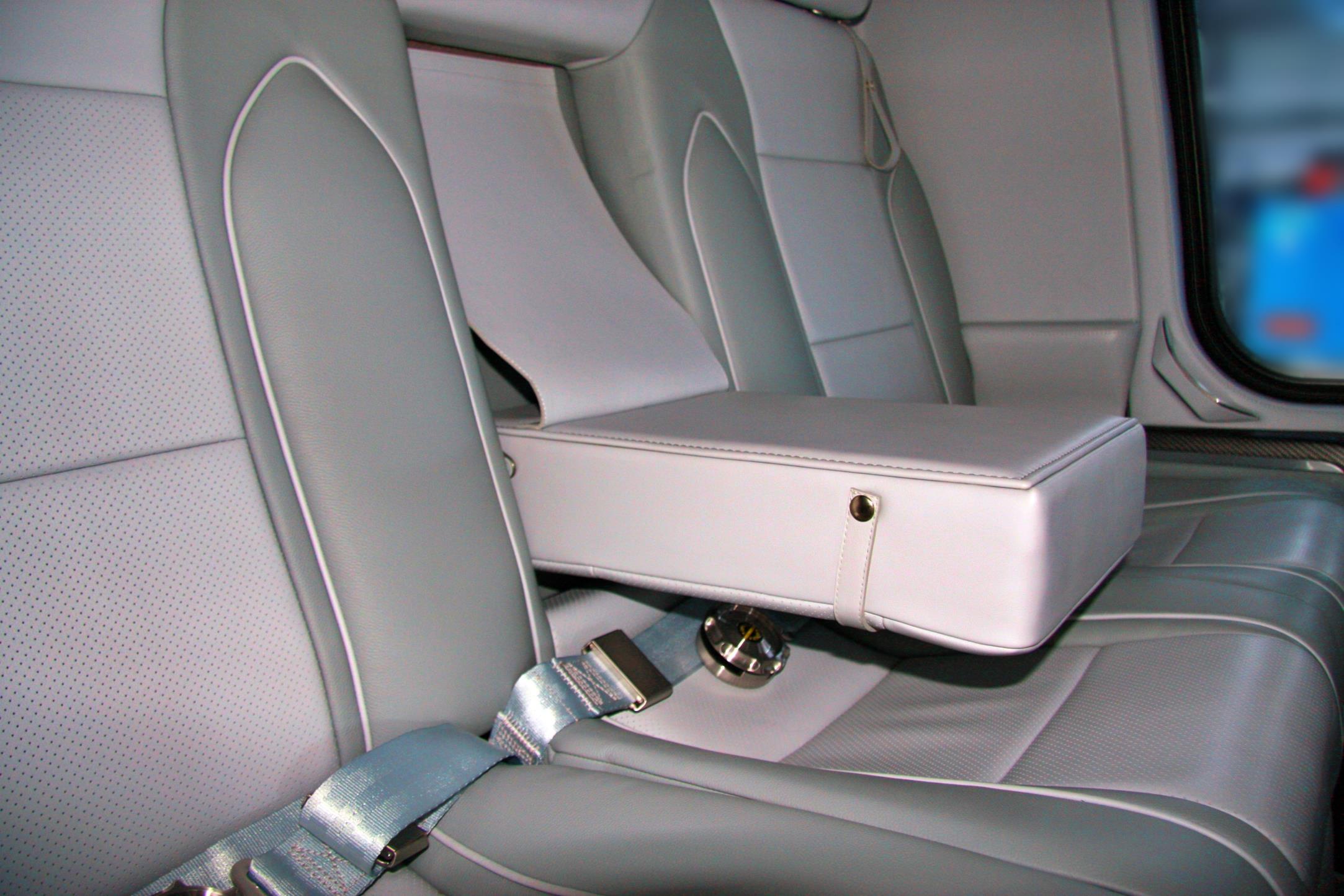

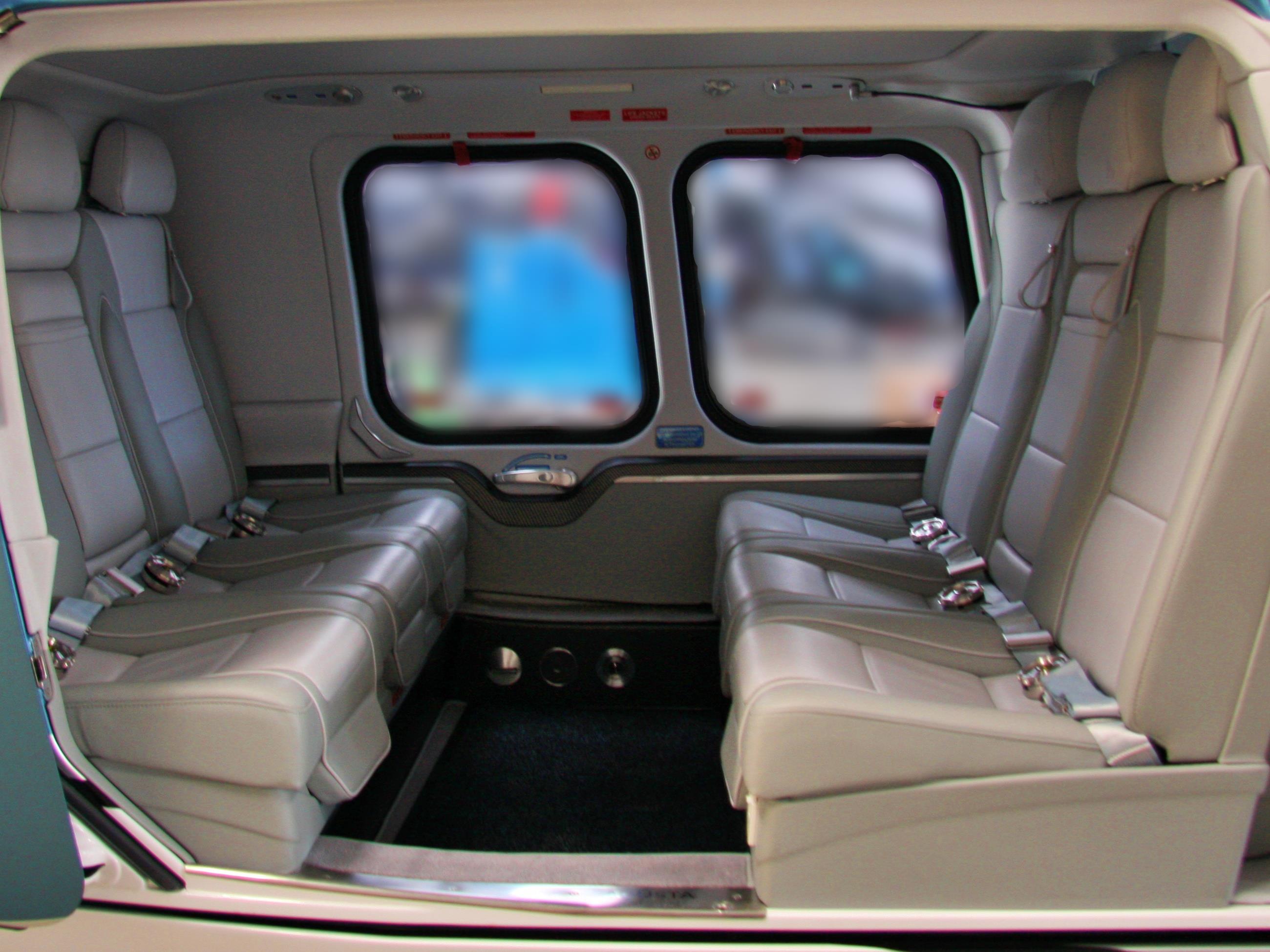

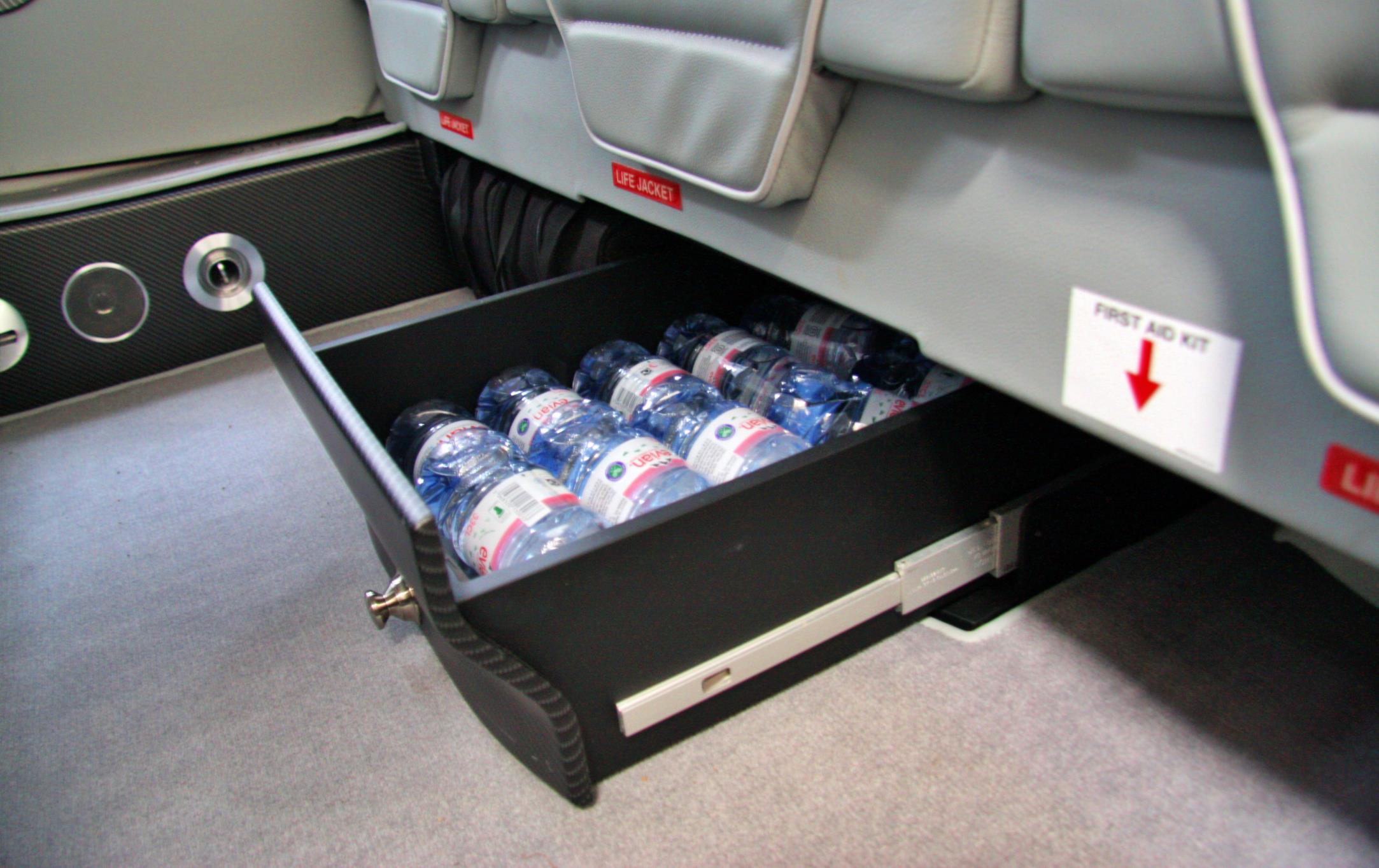

Interior Notes: VIP Corporate Interior - Six Seats. All seats crash-resistant covered with leather or fabric/leather. Three fwd facing (aft bench) with foldable armrest. Three aft facing seats (central bench) with see through modification and foldable armrest. 4-point shoulder harness with inertial reels and safety belts for all passenger seats. Single central drawer. Super silent soundproofing. Liners leather/leatherette covered. Cabin double layer acrylic windows. Decoration trim with metal inserts. Intercommunication system for passengers. Headset Bose ANR type (qty six). Cabin loudspeakers (qty two). Reading lights, emergency lights, floor courtesy lights. Passenger hooks (qty four). Upper and lower air vents. Floor carpeting with carpeting protection. Seat covers. Leather headset straps in cabin.
