2002 Gulfstream G-IvspJet Aircraft • Ponte Vedra Beach, Florida

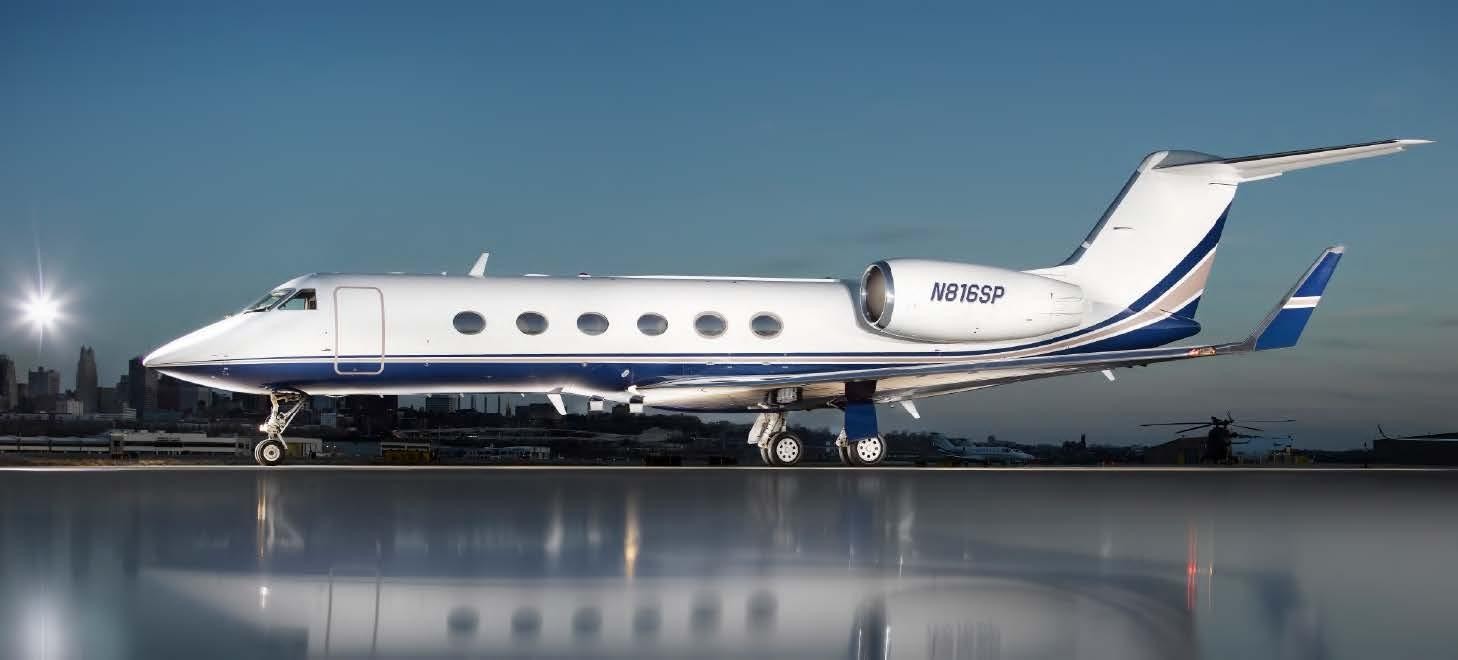

Available for sale or lease, this 2002 Gulfstream G-IVSP, registration N816SP (serial number 1452), shows 7,085 hours total time on the airframe and is located in Virginia. Both Rolls-Royce Tay MK 611-8 engines show 6,905 hours since new against an 8,000-hour TBO, and the engines and APU—a Honeywell GTPC36-150G with 5,468 hours total time since new—are enrolled in JSSI 100% programs. The aircraft is certified for FAA Part 91 operations.
The avionics suite is built around a Honeywell SPZ-8000 with PlaneDeck (6.1 software) and includes PlaneDeck Synthetic Vision System, FANS CPDLC, and WAAS/LPV capability. The panel features dual Honeywell...
Find similar aircraft
Specifications
- Category
- Jet
- Intended Use
- Business, Passenger
- Flight Rules
- IFR
- Seats
- 12
Hours, Logs & Inspections
- Total Time
- 7,085 hrs
- Engine 1 Time
- 6,905 hrs (SNEW)
- Engine 2 Time
- 6,905 hrs (SNEW)
- Logbook Status
- FAA Part 91
- Inspection Status
- Available for Sale or Lease

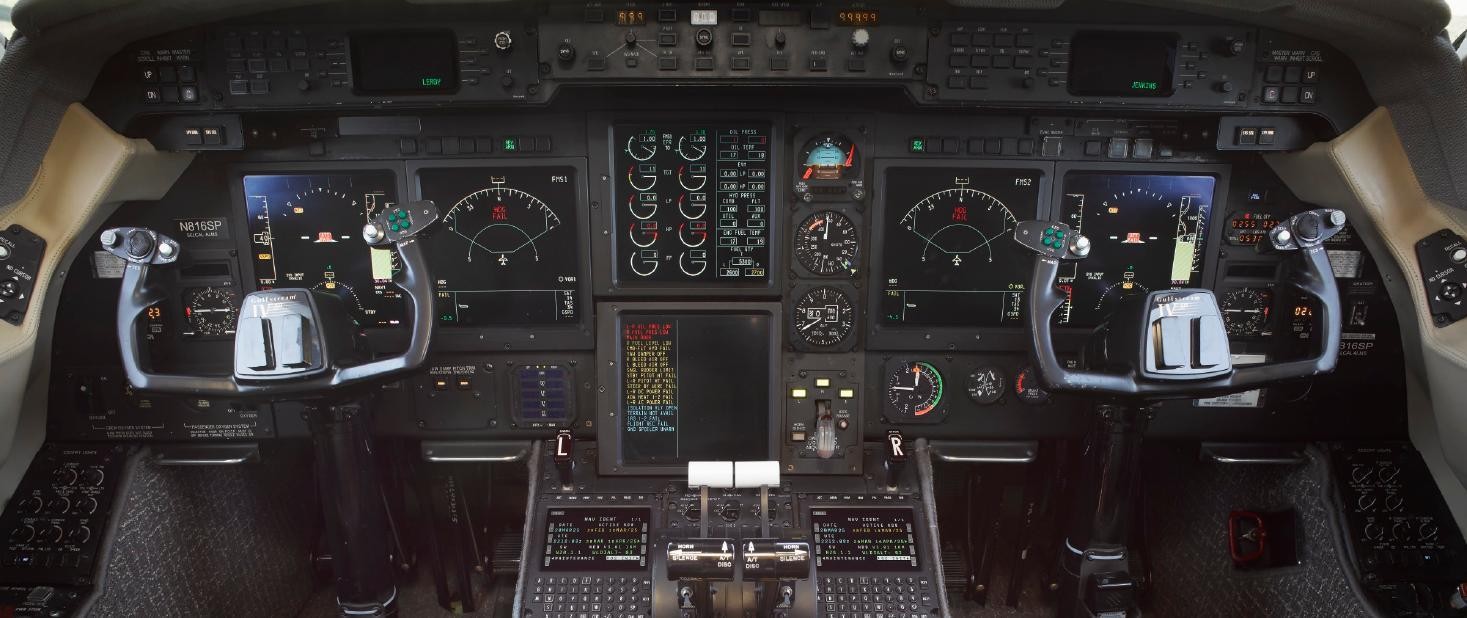

Avionics
GPS
Honeywell HG 2021 - Dual HG GPS
Comms
Collins VHF 422D - Triple VHF Comm, Dual VIR Nav, Dual ADF ADF, Dual DME DME, Dual TDR (Mode Transponder, Dual HF With SELCAL HF Comm, MCS Satcom
AP
Honeywell SPZ 8400 - Dual SPZ IFCS Auto Pilot
Weather
Honeywell Primus 880 - Dual Weather Radar; Windshear Equipped; TAWS Equipped w/RAAS; V EGPWS
Traffic
Honeywell TCAS II - TCAS II w/Change 7.1
ADSB
ADS-B Equipped
PFD
Honeywell DU-885 - 6-Tube EFIS; PlaneDeck Synthetic Vision System
MFD
Honeywell DU-885 - 6-Displays (Plane Deck Avionics Suite)
Additional Equipment
Engine Maintenance Program
JSSI - Engines And APU On 100% JSSI
CVR (Cockpit Voice Recorder)
Fairchild A100 - CVR
FDR (Flight Data Recorder)
Fairchild FA2100 - 88-Parameter FDR
EGPWS (Enhanced Ground Proximity Warning System)
Honeywell Mark V - V EGPWS (Equipped With RAAS)
Synthetic Vision System
Honeywell - Synthetic Vision System
SATCOM
Honeywell MCS 6000 - MCS Satcom
Wi-Fi / Connectivity
Gogo Avance L5 - Wi-Fi
In-Flight Entertainment
Airshow - Dual Forward Bulkhead Monitors, Credenza Monitor, Moving Map System, II Communications System With Three Handsets
APU (Auxiliary Power Unit)
APU On JSSI Program
ADF (Automatic Direction Finder)
Collins ADF 462 - Dual ADF ADF
DME (Distance Measuring Equipment)
Collins DME 442 - Dual DME DME
Transponder
Collins TDR 94D - Dual TDR (Mode Transponder
Weather Radar
Honeywell Primus 880 - Dual Weather Radar With Windshear Detection
HF Radio
Collins HF 9000 - Dual HF With SELCAL HF Comm
IRS (Inertial Reference System)
Honeywell LASEREF II - Triple LASEREF II IRS
ADC (Air Data Computer)
Honeywell AZ 810 - AZ ADC
Flight Dynamics System
Honeywell SPZ 8400 - Dual SPZ IFCS FDS
Laser Ref
Honeywell LASEREF II - Triple LASEREF II
FMS
Honeywell NZ 2000 - Triple NZ
ADC
Honeywell AZ 810
DME
Collins DME 442 - Dual DME
ADF
Collins ADF 462 - Dual ADF
CVR
Fairchild A100
FDR
Fairchild FA2100 - 88-Parameter
APU
Honeywell GTPC36-150G - TTSN: 5,468, Program Coverage: JSSI 100%
Wi-Fi
Gogo AVANCE L5
Airshow
Airshow 99
Cabin Management
AirCell Axxess II - II (3 Handsets)
Interior & Exterior
- Interior Year
- 2010
- Paint Year
- 2010
- Interior Notes

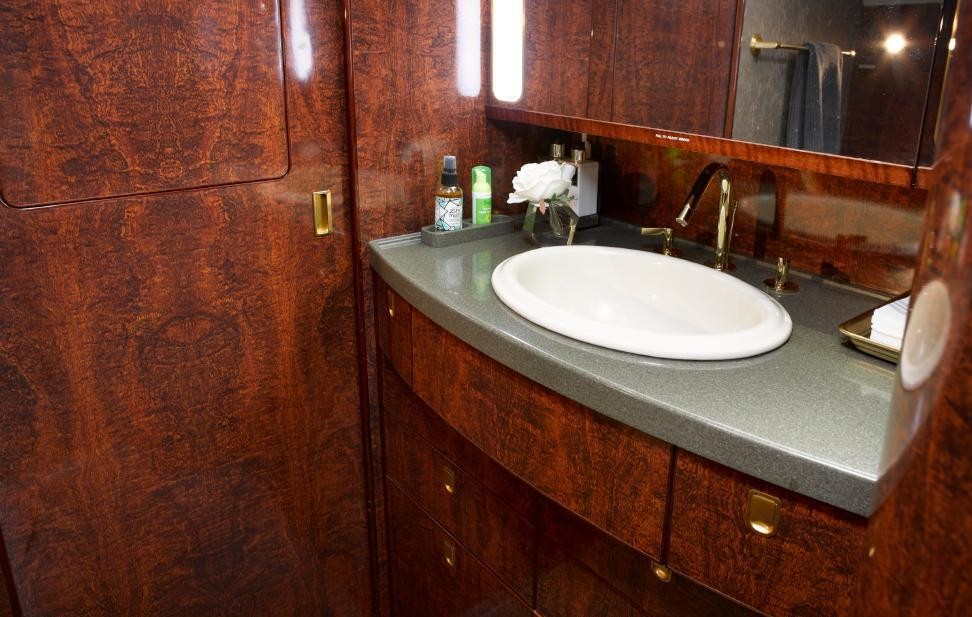

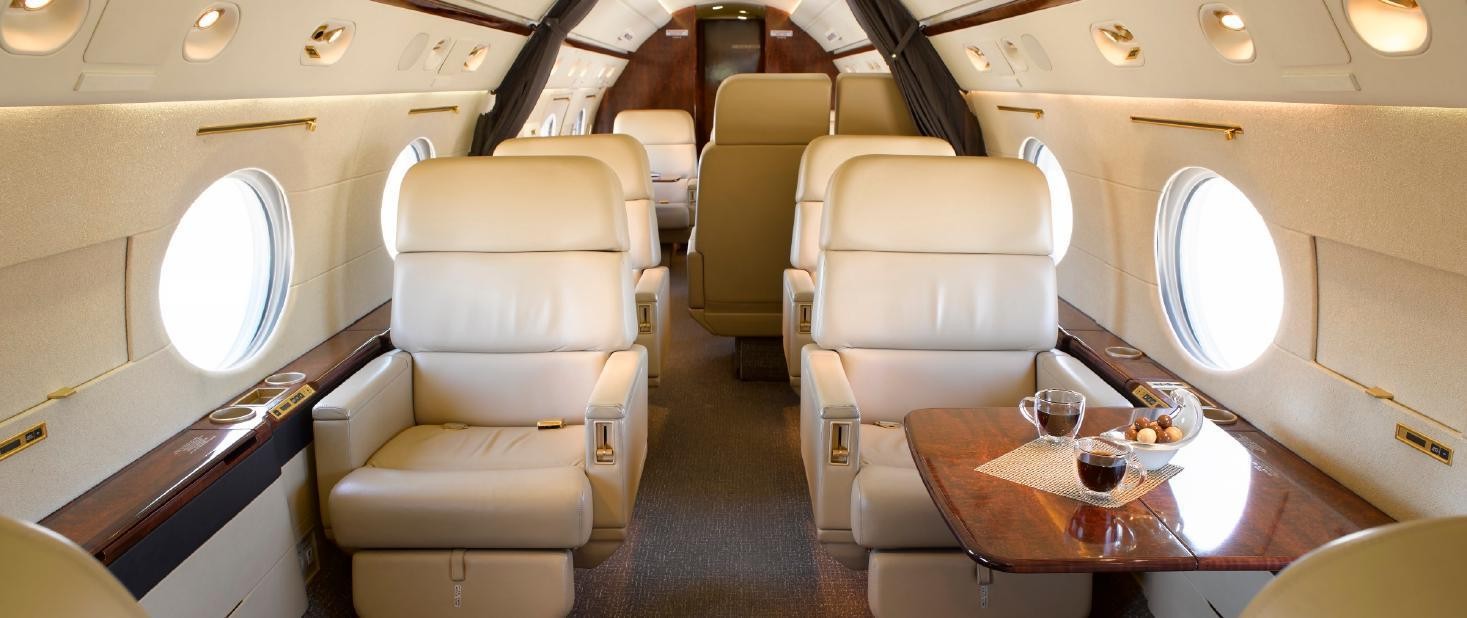

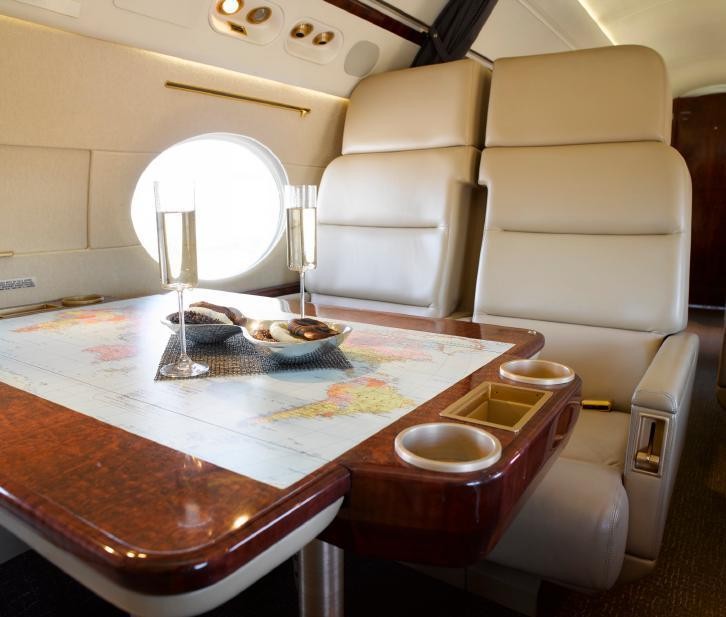

- Stepping aboard, passengers are welcomed into one of the largest and most comfortable cabins in its class. With over 45 feet of cabin length, six-foot stand-up headroom, and multiple living areas, the GIV-SP provides an environment designed for both productivity and relaxation. Large panoramic windows fill the cabin with natural light, while generous seating, abundant workspace, and exceptional baggage capacity create an ideal setting for business travel or extended family trips. Configured to accommodate up to 12 passengers, this Gulfstream IV-SP features a thoughtfully designed executive cabin with a forward four-place club arrangement, followed by two individual executive seats, a mid-cabin four-place conference group opposite a credenza, and two additional aft executive seats, providing multiple areas for meetings, dining, or quiet relaxation. The aft full-service galley is equipped with a microwave, coffee maker, and ice drawer, while the private aft lavatory offers a sink and generous storage. Passengers remain connected throughout the flight with Gogo Avance L5 Wi-Fi, dual forward bulkhead monitors, a credenza monitor, Airshow moving map system, and an Aircell Axxess II communications system with three handsets. The expansive baggage compartment is fully accessible during flight, an advantage rarely found in competing aircraft, allowing easy access to luggage and personal belongings at any point during the journey. The result is a refined cabin that combines timeless Gulfstream craftsmanship with the comfort, functionality, and technology expected for today's global travel.
- Exterior Notes
- Matterhorn White with beige and dark blue accent colors
Engine & Propeller
- Engine Type
- Jet
- Engine Count
- 2
- Engine Make
- Rolls Royce
- Engine Model
- Tay MK 611-8
- Engine Power
- TBO: 8,000 Hr./240 M
Call for Price
Aircraft Location
Ponte Vedra Beach, Florida
Listing Details
- Used
- For Sale
Contact Seller
Call for Price
Aircraft Location
Ponte Vedra Beach, Florida
Listing Details
- Used
- For Sale
Contact Seller
