1969 Beechcraft 36 BonanzaSingle-Engine Piston Aircraft • Carefree, AZ, USA

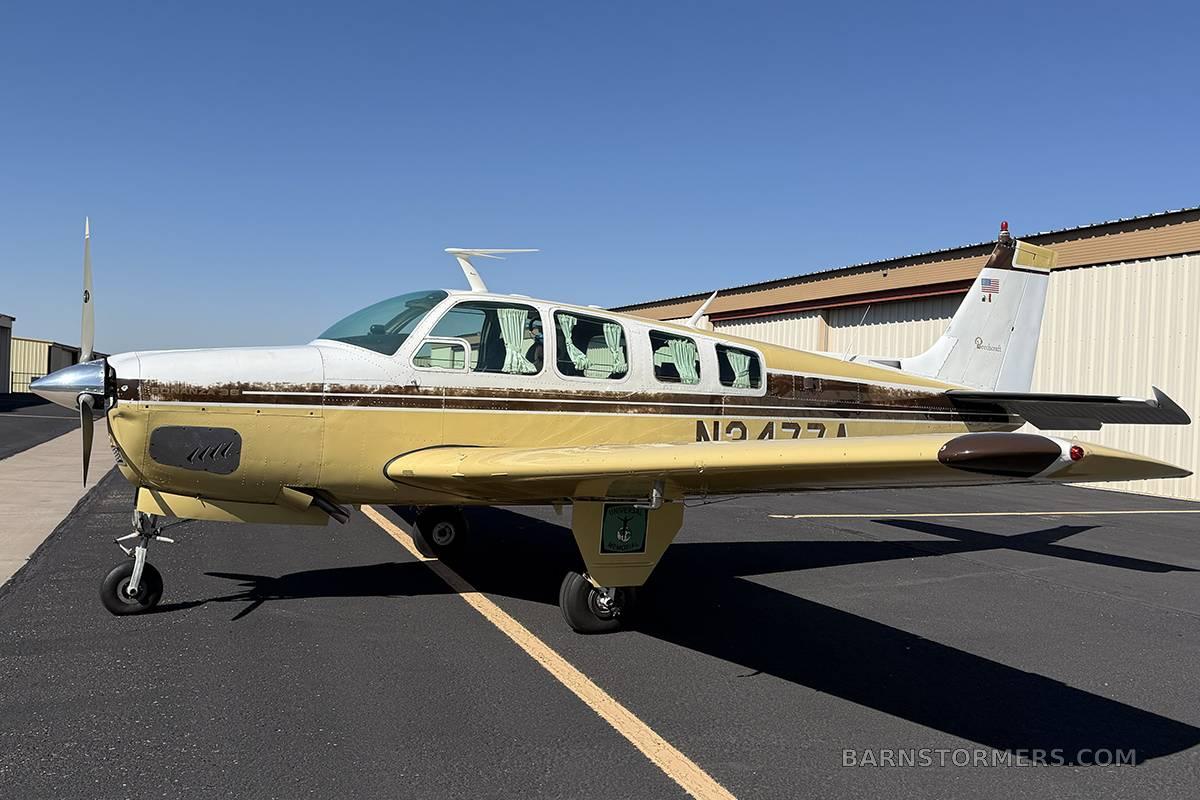

This 1969 Beechcraft 36 Bonanza, registration N3477A, is a dry Arizona aircraft with 5,310 hours total time on the airframe. It is powered by an upgraded factory Continental IO-550-B42 engine producing 300 horsepower, with 910 hours since factory new (2004), and a 3-blade McCauley aluminum propeller with 910 hours since overhaul. The aircraft carries a useful load of 1,638 pounds, is IFR-equipped, and the seller states it has no damage history, has always been hangared, and has complete logbooks back to the factory production test flight. It has been owned by the same family for nearly all of its life and was featured on the cover of...

Year: 1969

Make: Beechcraft

Series: 36 Bonanza

Model: 36 Bonanza

Find similar aircraft

Beechcraft 36 Bonanza

Find Beechcraft 36 Bonanza aircraft

Beechcraft 36 Bonanza Series

Find aircraft in this series

Beechcraft 36 Bonanzas from $175k-$225k

1960s Beechcraft 36 Bonanzas

Find Beechcraft 36 Bonanzas from the 1960s

All Beechcraft Aircraft

Browse all aircraft from Beechcraft

All Single-Engine Pistons

Browse all single-engine piston aircraft

Specifications

Category: Single-Engine Piston

Intended Use: Business, Passenger, Recreational

Flight Rules: IFR

Useful Load: 1,638 lbs

Seats: 6

Hours, Logs & Inspections

Total Time: 5,310 hrs

Engine 1 Time: 910 hrs (SNEW)

Prop 1 Time: 910 hrs (SPOH)

Logbook Status: Clean and complete logbooks back to the factory production test flight; professionally scanned, well organized, and available upon request

Inspection Status: All ADs complied with and documented at last annual inspection. Next Annual Insp due by Sep 30 2027. Transponder Cert (91.413) due by Feb 29 2028. Pitot/Static Cert (91.411) due by Oct 31 2028. AD 95-04-03 wing spar center section insp due again in ~350 hrs.

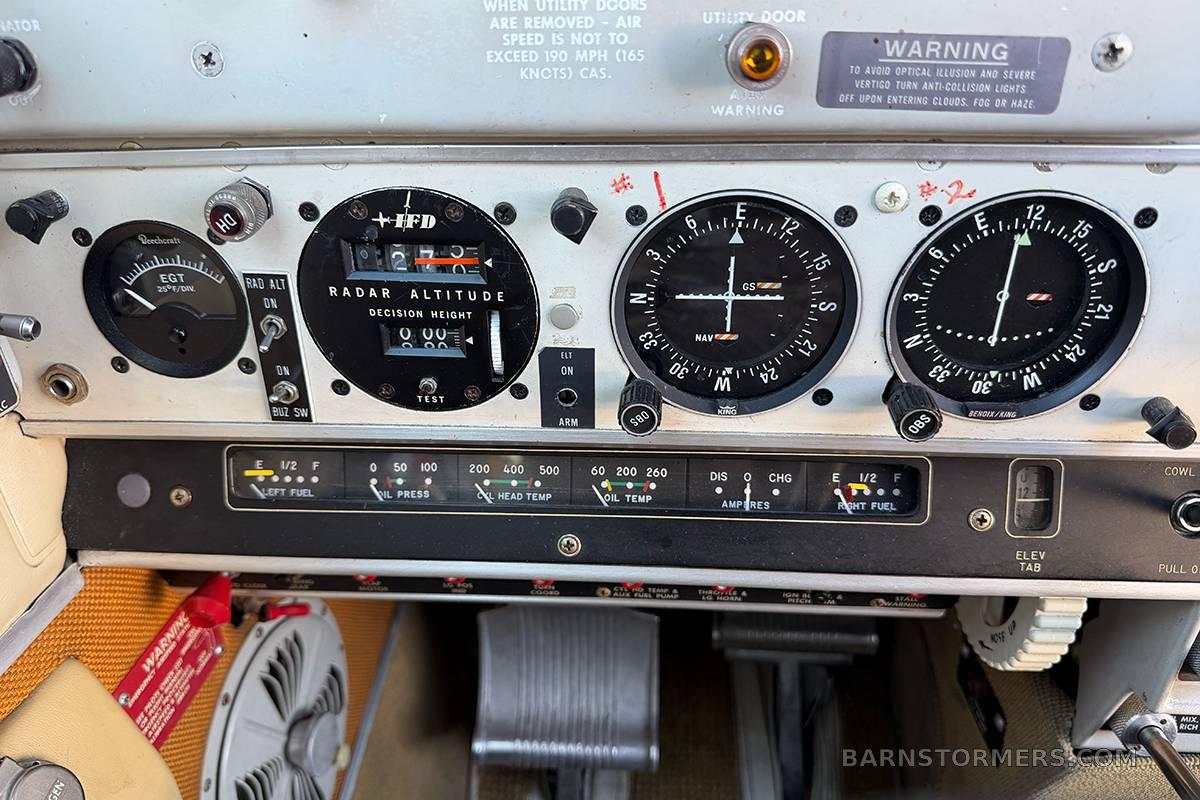

Avionics

Comms

Bendix King KX165 - and Navcoms; Glideslope Indicator; VOR/Localizer Indicator; DME

GPS

Garmin GPSmap 396 - portable unit (mounted)

Brittain B-5 - autopilot single-axis (roll axis functional, pitch axis INOP)

Audio

Bendix King KMA24 - audio panel

ADSB

Garmin GTX335 - ADS-B Transponder (ADS-B Out)

Additional Equipment

Propeller

McCauley 3-blade - aluminum prop

Dual Yoke Controls

Cygnet - dual-yoke pilot controls; converted from single-yoke to dual-yoke in 2020

Engine Baffles

D'Shannon - engine baffles (STC)

Sun Visors

Rosen - sun visors (STC)

Door Assist

Door Steward - pneumatic assist (STC)

Oxygen System

Factory oxygen system - bottle removed

Aircraft Cover

Bruce's Cover - (never in box)

Spar Reinforcement

Cruiseair - 2010: (Ramona) installed front spar carry thru structure reinforcement kit

Original Yoke

Includes original single throw-over yoke

Interior & Exterior

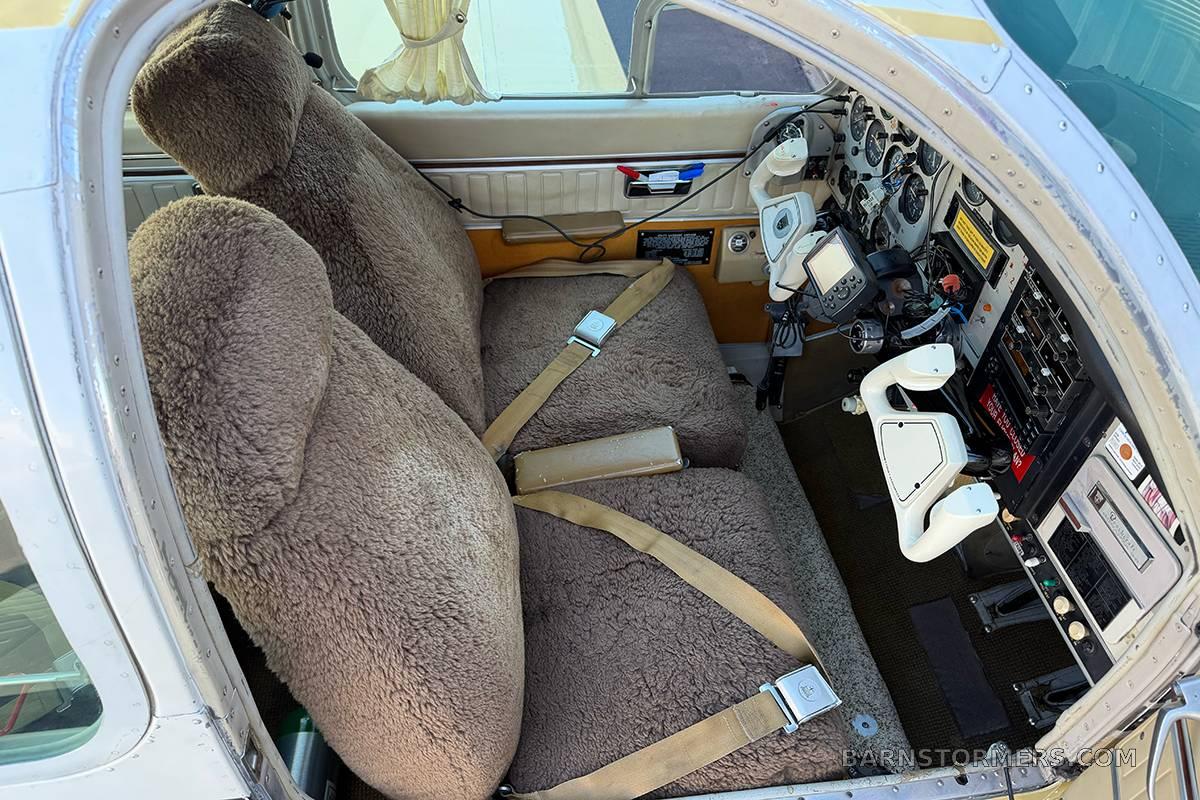

Interior Notes: Largely original interior in good condition for its age. Seats have high quality, thick, plush custom-fit sheepskin covers. Headliner, side panels, and door panels do not show excessive wear and are in generally good condition. Rear seats in conventional configuration (not club seating). Rear-most two seats currently removed but included. Six forward-facing seats.

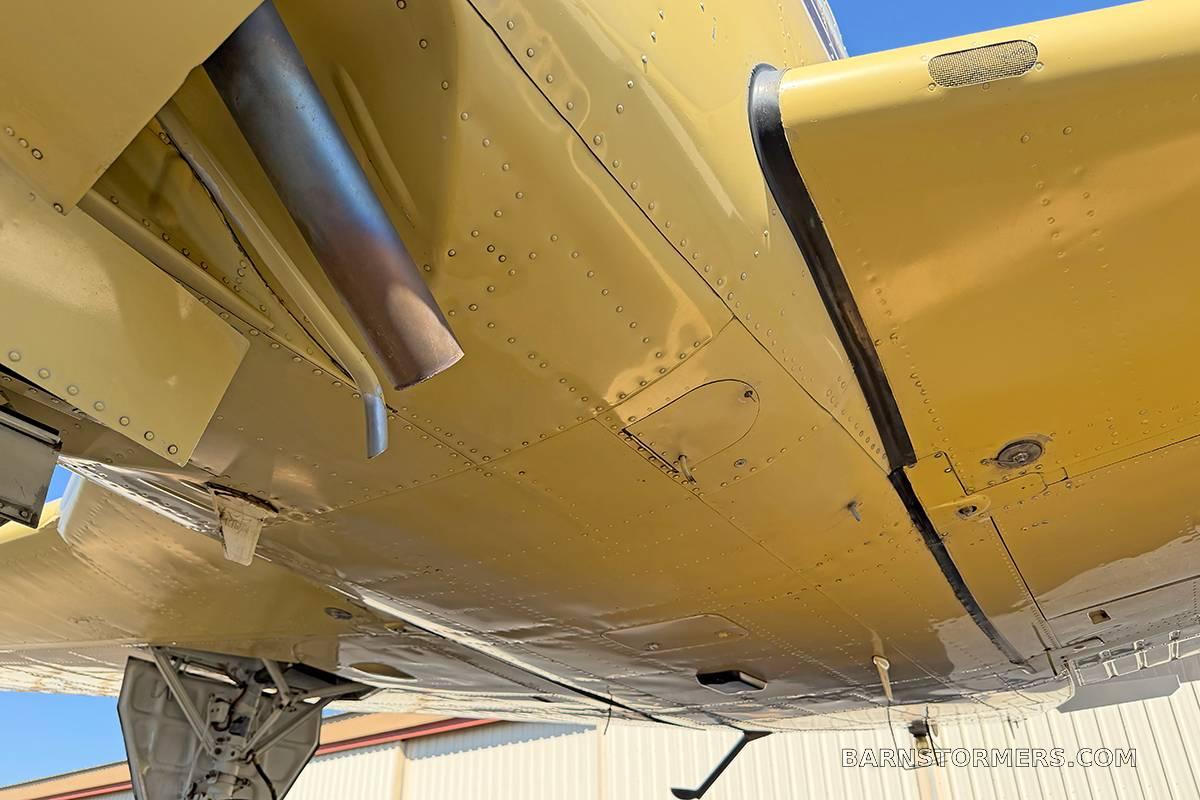

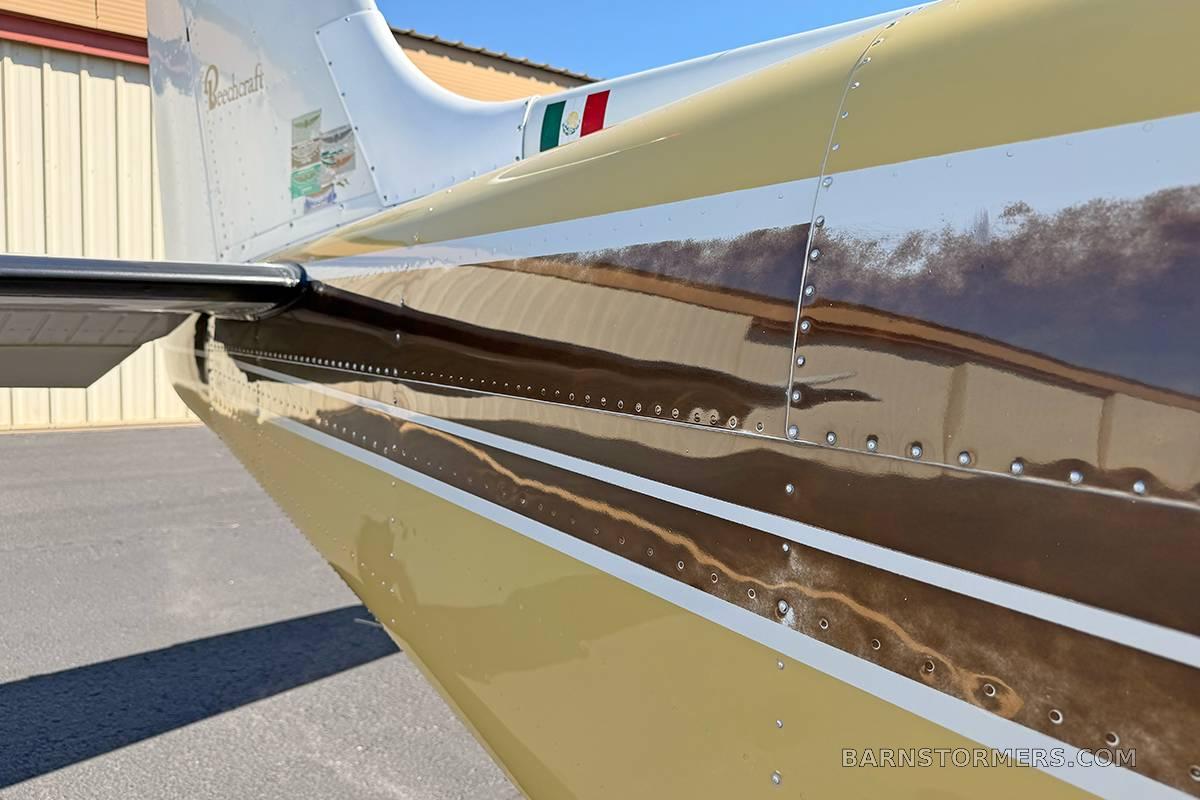

Exterior Notes: Original factory paint (Saturn Gold, Sable Brown, and White) with vintage patina, highly polished. Aluminum in good condition. Wing and tail leading edges free of hangar rash. Starboard side elevator has minor blemish on outer trailing edge. Engine upper cowling has some paint chipping and one minor dent; very minor paint flaws along wing leading edges and tips. Side windows appear clear; windshield shows some haze. Tires nearly new. No evidence of fluid leaks.
