1960 Beechcraft M35 BonanzaSingle-Engine Piston Aircraft • Placerville, CA, USA

This 1960 Beechcraft M35 Bonanza, registration N54RH, offers a well-maintained example of the classic V-tail with a substantial power upgrade. Based at Placerville, California (KPVF), the airframe has logged 8,497 total hours. Notably, this is the second IO-520 engine installed, and the current high-time IO-520 BB factory reman unit has 1,889.2 hours since factory reman (TBO 1,700 hours). The propeller has 319.1 hours. The seller notes the last two owners hangared the aircraft for a combined 50 years in inland Southern California, and that the logs are complete and very well organized. The annual inspection is current through May 2027, and...

Year: 1960

Make: Beechcraft

Series: 35 Bonanza

Model: M35 Bonanza

Tail #: N54RH

Serial #: 6275

Find similar aircraft

Beechcraft M35 Bonanza

Find Beechcraft M35 Bonanza aircraft

Beechcraft 35 Bonanza Series

Find aircraft in this series

Beechcraft 35 Bonanzas from $25k-$75k

1960s Beechcraft 35 Bonanzas

Find Beechcraft 35 Bonanzas from the 1960s

All Beechcraft Aircraft

Browse all aircraft from Beechcraft

All Single-Engine Pistons

Browse all single-engine piston aircraft

Specifications

Category: Single-Engine Piston

Intended Use: Business, Recreational

Flight Rules: IFR

Seats (Stock): 4

Hours, Logs & Inspections

Total Time: 8,497 hrs

Engine 1 Time: 1,889 hrs

Prop 1 Time: 319 hrs

Logbook Status: Complete and very well organised logs

Inspection Status: Annual Due: May 2027

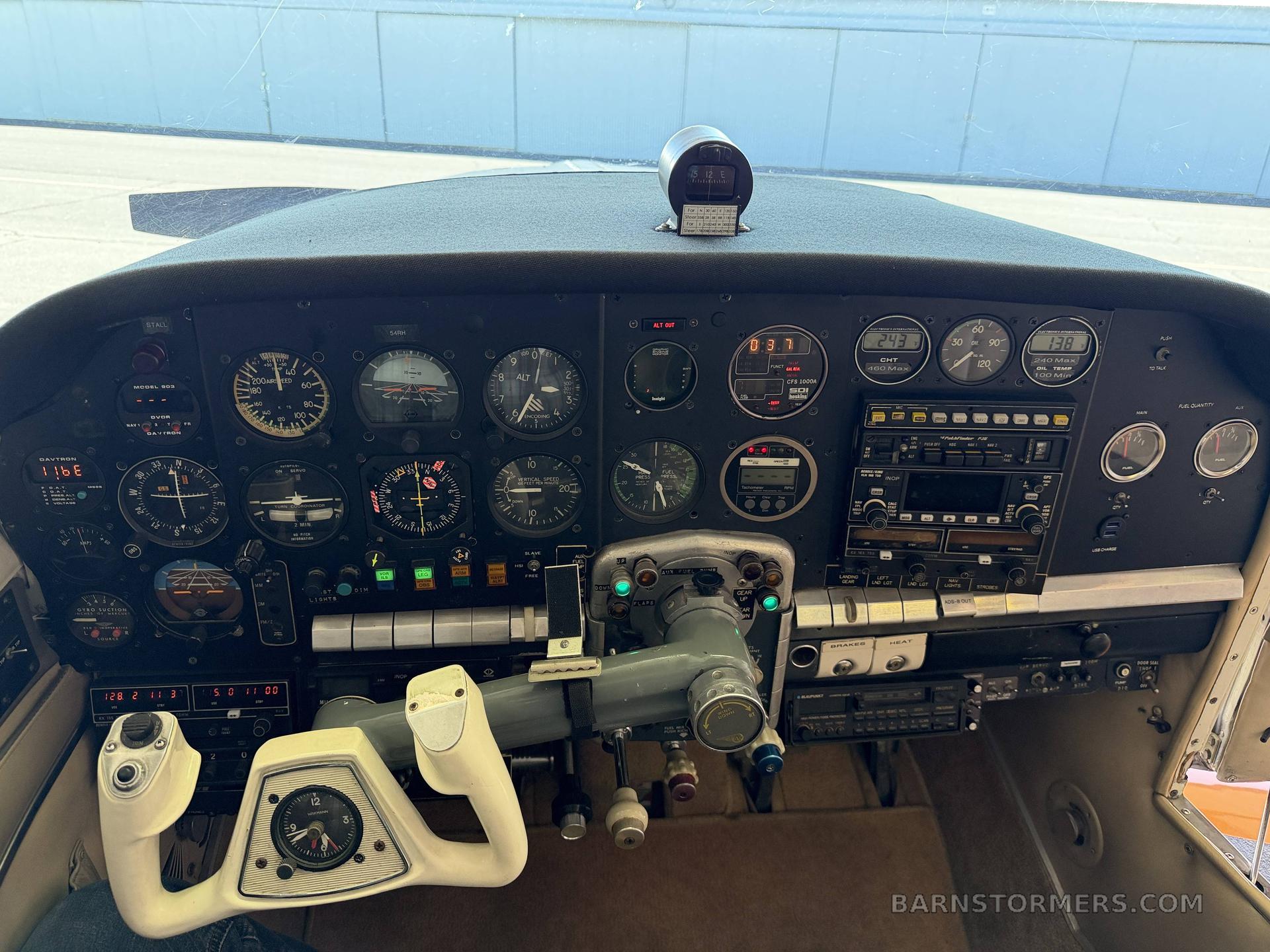

Avionics

PFD

King KX 155 - KX Navcom With KI VOR/LOC/glideslope

Comms

King KX 165 - KX Navcom Synced to HSI and KX Navcom With KI 204 VOR/LOC/Glideslope

Audio

King KA-134 - Audio Panel

ADSB

uAvionix TailBeacon - ADS-B and AT Transponder

ADS-B In

Stratux ADS-B - ADS-B

EMS

Insight Graphic Engine Monitor - and CHT and and SDI and

Additional Equipment

Directional Gyro

Century HSI

Altitude Indicator

Backup Altitude Gyro

VOR Indicator

Davtron 903 - Digital VOR

Transponder

Narco AT 50A - AT Transponder

Tachometer

Horizon Instruments P-1000 - Digital Tachometer

Engine Monitoring

Electronics International CHT/Oil Temp - Digital CHT and Gauges

Fuel Flow System

SDI Hoskins CFS-1000A - SDI Digital Fuel Flow

Outside Air Temperature Indicator

Davtron 5 Function - Indicator: Outside Air Temp/Fahrenheit

Audio System

Blaupunkt AM/FM/Cassette - Stereo and

Lighting

Wing Tip Strobes

USB Power

Four USB Type-A Connectors: 2 at the instrument panel, 2 at the rear seat

Instrument

Century HSI - HSI Backup Altude Gyo and Digital VOR and Outside Air Temp/Fahrenheit, Outside Air Temp/Centigrade, Pressure Altitude, Density Altitude, Voltage

Interior Equipment

Beech Inertial Reel - Shoulder Harnesses in front

Wing Tips

Osborne Tip Tanks - 20 gallons each (Original Wing available)

Interior & Exterior

Interior Rating: 9/10

Paint Rating: 8/10

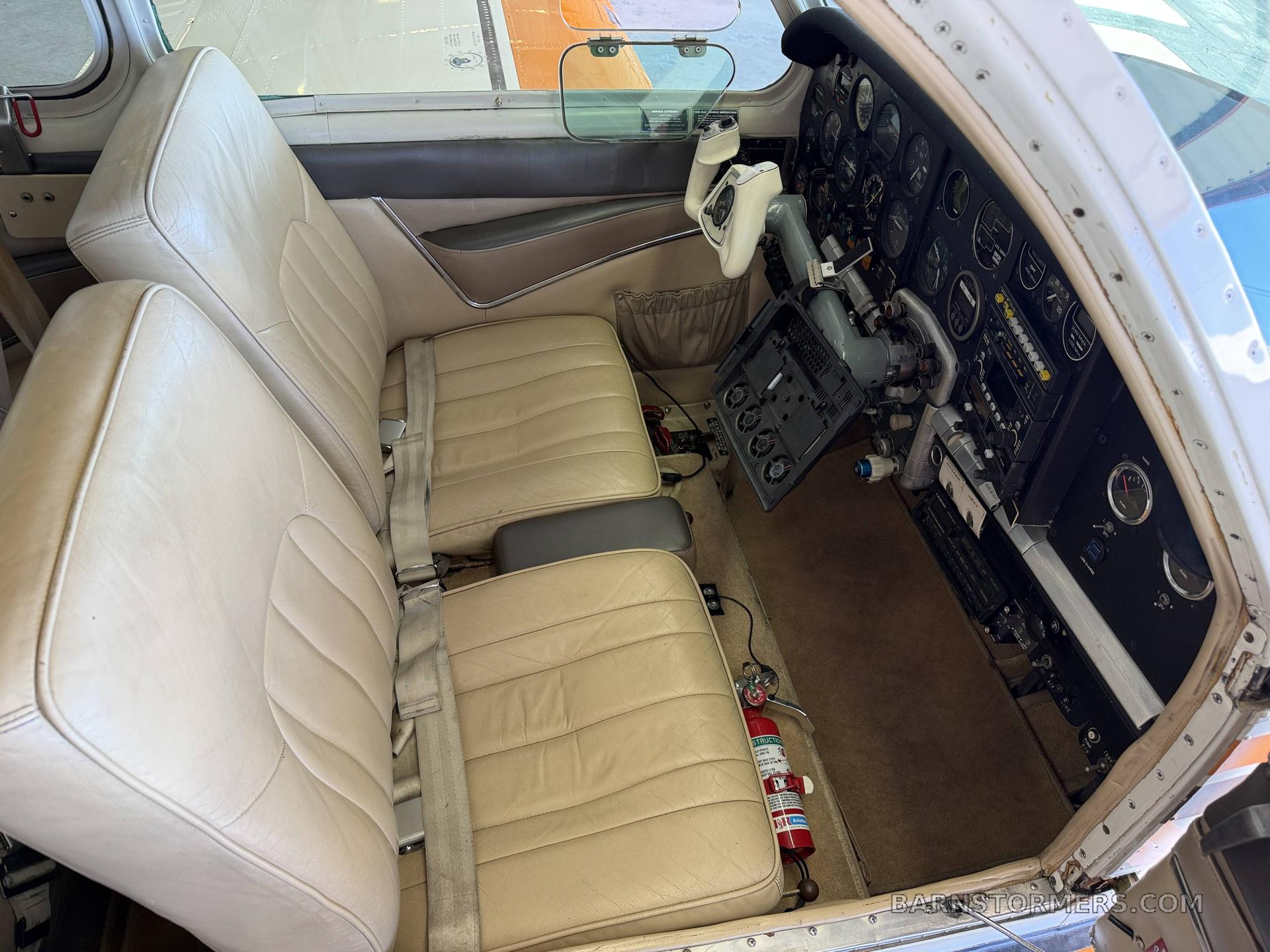

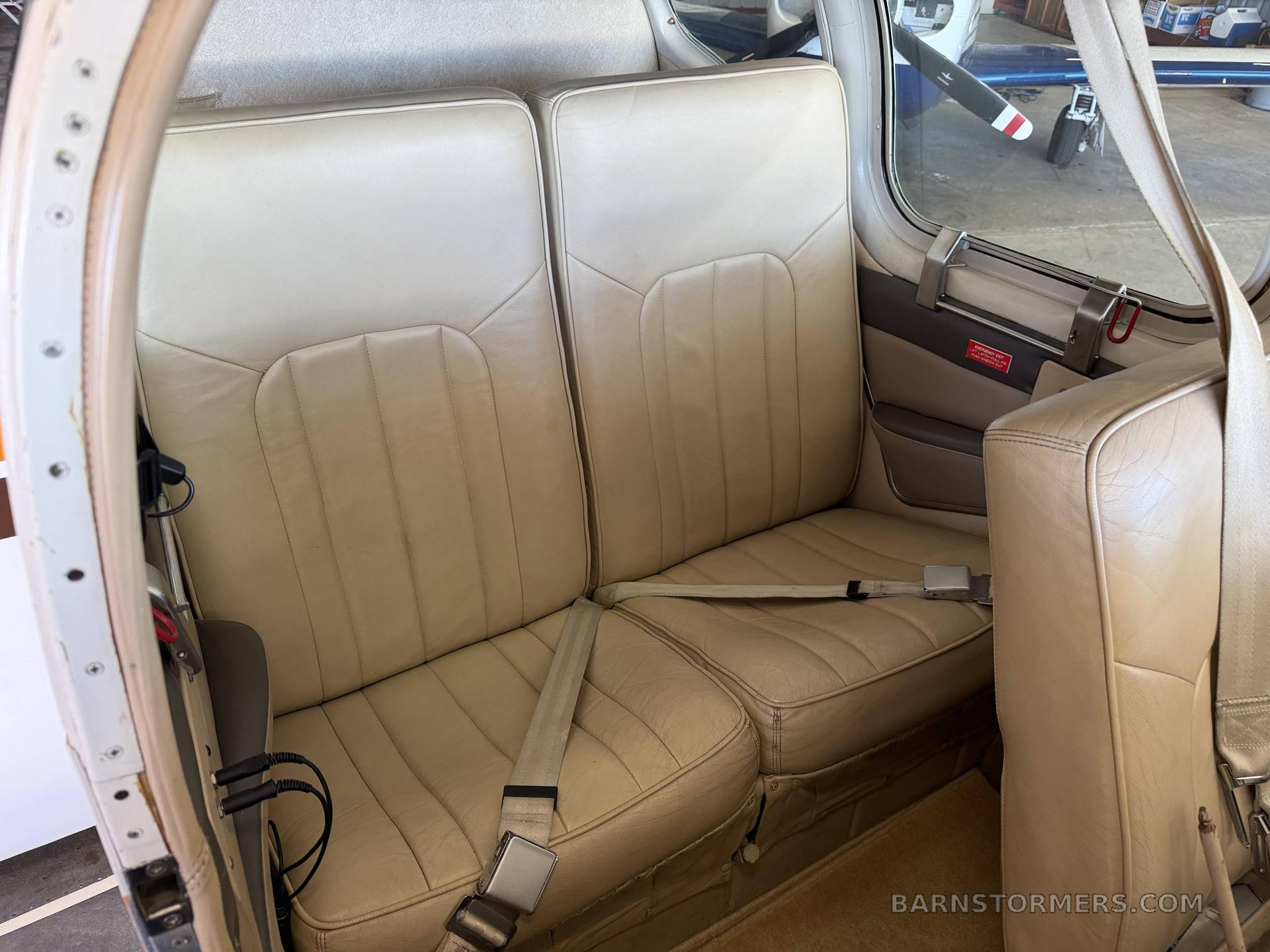

Interior Notes: Excellent tan leather seats with matching sidepanels and carpet with mats. Cream headliner. All in very good condition. Overall rated 9 out of 10.

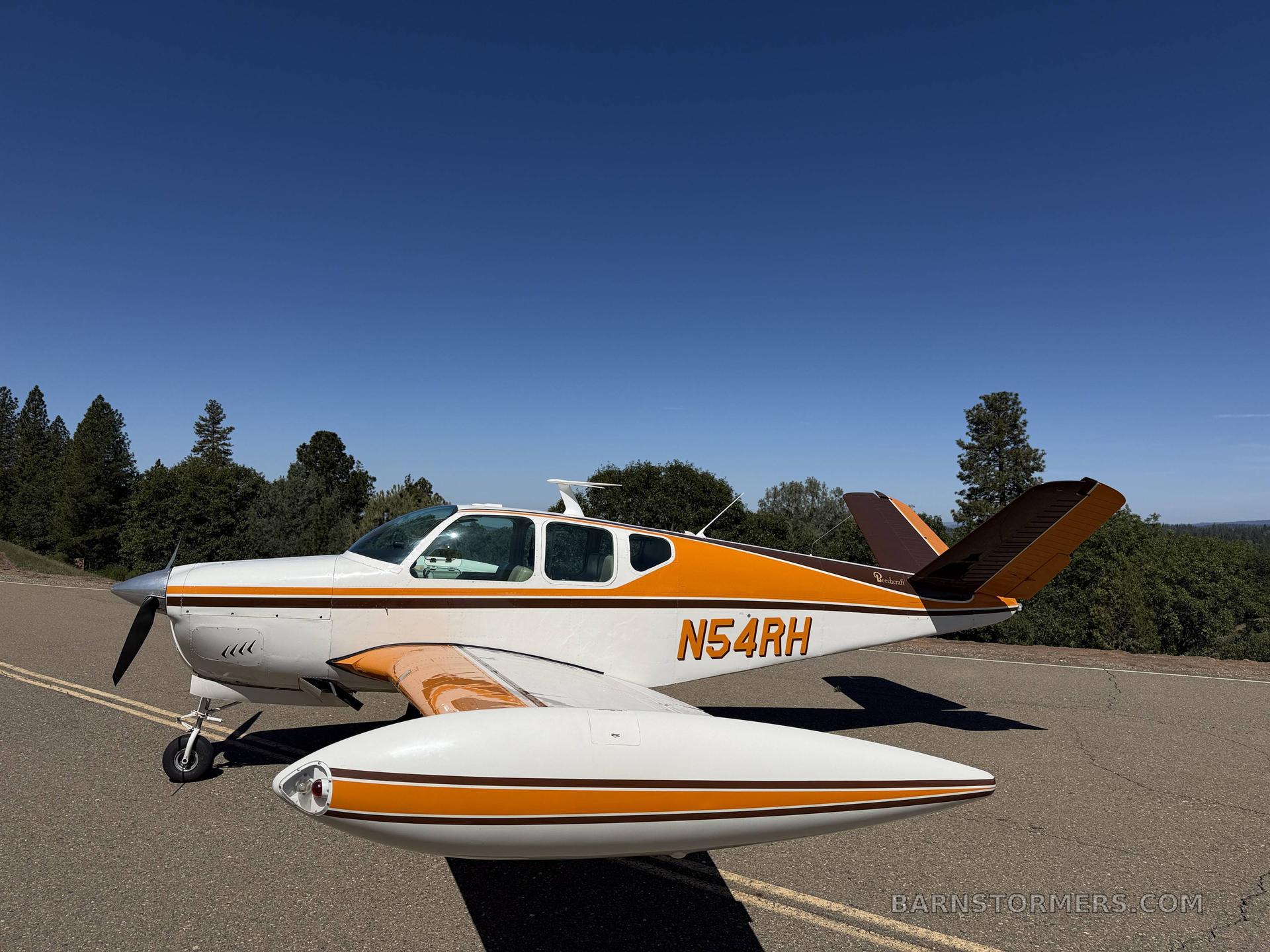

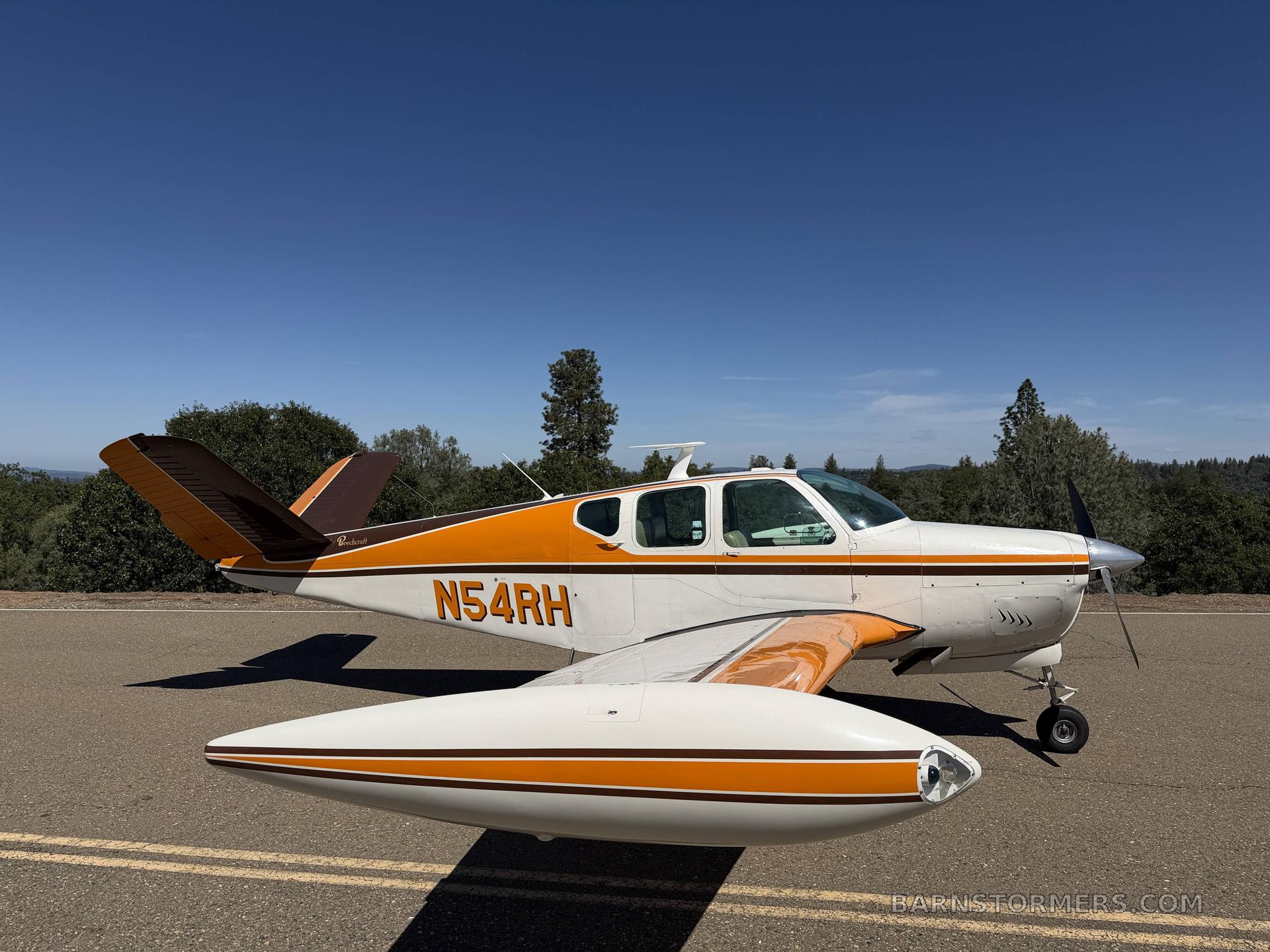

Exterior Notes: Overall white with brown and orange accents in classic typical Beechcraft scheme. Very nice condition with very few small blemishes. Rated 8 out of 10.
